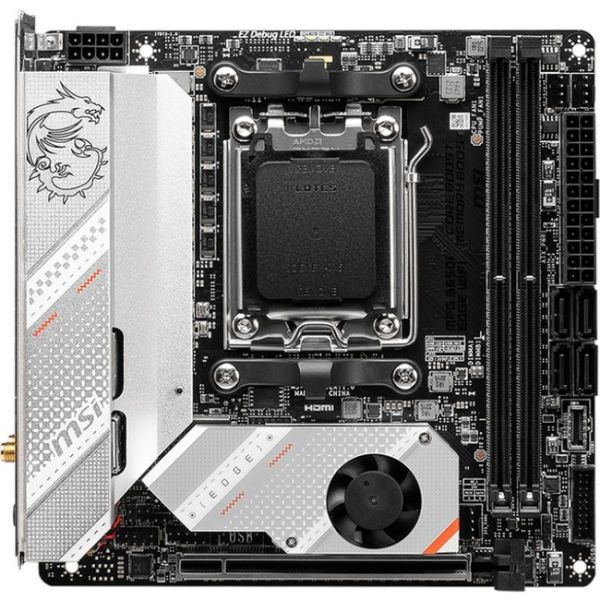

MSI MPG B650I EDGE WIFI Gaming Desktop Motherboard

Marketing Information

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.

7W/mK Thermal Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

M.2 Shield Frozr

With double ball bearings fan to keeps M.2 SSDs safe while preventing throttling, making them run faster.

Pump Fan Support

Control watercooling pump spee...ds for best flow and noise control.

MOSFET Baseplate

Baseplate on the back to keep MOSFET in lower temparature, ensuring better heat dissipation effect.

10-Layer Server Grade PCB

10-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Specifications
Manufacturer: MSI
Manufacturer Part Number: MPG B650I EDGE WIFI
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Line: MPG
Product Model: B650I EDGE WIFI
Product Name: MPG B650I EDGE WIFI Gaming Desktop Motherboard
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B650
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 7
Memory
Number of Memory Slots: 2
Memory Form Factor:

• UDIMM
• DIMM

Maximum Memory Supported: 64 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5800 MHz
• 5600 MHz
• 5400 MHz
• 5200 MHz
• 5000 MHz
• 4800 MHz
• 6600 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of Expansion Slots: 1
PCI Express Standard: PCI Express 4.0
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 3
HDMI: Yes
HDMI Version: 2.1
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 2
Physical Characteristics
Form Factor: Mini ITX
Width: 170 mm
Depth: 170 mm
