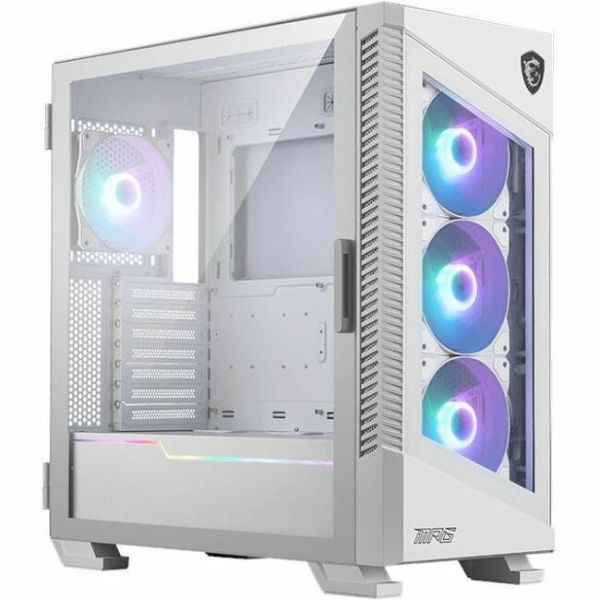

MSI MPG VELOX 100R Computer Case

Marketing Information

UNMATCHED POWER

Equip your battle station like no other with the MPG VELOX 100 Series. Inspired by speedy patterns and lively lighting effects, the MPG VELOX 100 Series is sure to help you dominate the battlefield with unmatched power.

TEMPERED GLASS FRONT PANEL

The MPG VELOX 100R WHITE's front panel consists of a tempered glass that can clearly showcase the fans' ARGB lighting without any obstruction.

Optimized Airflow

The MPG VELOX 100 Series is optimized to provide generous and effective airflow for system cooling with vents built throughout the system. The MPG VELOX 100 Series comes with 4 fans and can mount up to 7.

VERTICAL GPU MOUNT

The MPG VELOX 100 Series comes ...with a vertical GPU bracket as an accessory that allows you to mount your graphics card vertically.

Big Volume

The MPG VELOX 100 Series provides excellent components clearance, capable of having 1 x 360mm radiator/3 x 120mm fans on both the top and the front.

ARGB SHOWROOM

Create your own ARGB battle station with the MPG VELOX 100 Series, fully supported by MSI Mystic Light.

INSTA-LIGHT LOOP BUTTON

Quickly control the MPG VELOX 100 Series' lighting effects with the Insta-Light Loop at the touch of a button. Click through the profiles at ease and choose a favorite.

SIDE AIR VENTS

The MPG VELOX 100 Series comes with a side air vent that can support up to 2 fans / 240mm radiator.

BETTER TOGETHER

Synergize the MPG VELOX 100 Series with a MSI motherboard by bridging a USB Gen 2x2 Type-C port with 20 Gbps for convenient access. Establish a complete MSI gaming ecosystem with a graphics card, liquid cooler, and power supply.

MAGNETIC DUST FILTER

A magnetic filter sits on the top vents keeping dust from falling inside while being easily removed for cleaning.

Specifications
Manufacturer: MSI
Manufacturer Part Number: MPGVELOX100RWHITE
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Line: MPG VELOX 100R
Product Name: MPG VELOX 100R Computer Case
Product Type: Computer Case
Technical Information
Motherboard Supported:

• ATX
• Micro ATX
• Mini ATX

Number of Fans Supported: 9
Number of Fans Installed: 4
Installed Fan Size: 120 mm
Bays
Number of Internal 3.5" Bays: 2
Number of Internal 2.5" Bays: 2
I/O Expansions
Total Number of Expansion Slots: 7
Interfaces/Ports
Total Number of USB Ports: 3
USB Port Details:

• 2 x USB-A 3.2 Gen 1
• 1 x USB 3.2 (Gen 2) Type C

Total Number of Audio In Ports: 1
Total Number of Audio Out Ports: 1
Physical Characteristics
Color Family: White
Product Color: White
Product Material: Tempered Glass
Cooler Type: Fan Cooler
Form Factor: Mid-tower
Maximum CPU Cooler Height: 175 mm
Maximum PSU Length: 220 mm
Height: 490 mm
Width: 231 mm
Depth: 474 mm
Weight (Approximate): 8.64 kg
