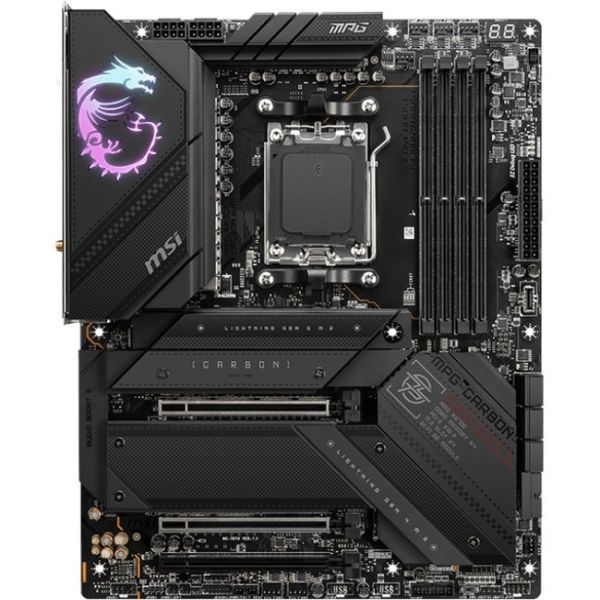

MSI MPG X670E CARBON WIFI Gaming Desktop Motherboard

Marketing Information

MPG X670E CARBON WIFI employs carbon black color scheme and RGB lighting to show off different personality and identity. Besides being stylish, it is also powerful.

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

Direct Touch Heat-pipe

Connecting two MOS heatsinks to enlarge the surface of heat dissipation.

M.2 Shield Frozr

Keeps M.2 SSDs safe while preven...ting throttling, making them run faster.

7W/mK Thermal Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

Enhanced M.2 Thermal

Double-sided M.2 Shield Frozr and Enlarged heatsink desing keep PCIe 5.0 M.2 SSDs safe while preventing throttling.

Enlarged PCH Heatsink

The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency

Specifications
Manufacturer: MSI
Manufacturer Part Number: MPG X670E CARBON WIFI
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Line: MPG
Product Model: X670E CARBON WIFI
Product Name: MPG X670E CARBON WIFI Gaming Desktop Motherboard
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: X670
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 7
Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 128 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 6666 MHz
• 6600 MHz
• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5800 MHz
• 5600 MHz
• 5400 MHz
• 5200 MHz
• 5000 MHz
• 4800 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 10
• 1

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
PCI Express Standard:

• PCI Express 5.0
• PCI Express 4.0

Interfaces/Ports
Total Number of USB Ports: 10
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 6
Number of USB 3.2 Gen 2 Type-C Ports: 1
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 304.8 mm
Depth: 243.8 mm
