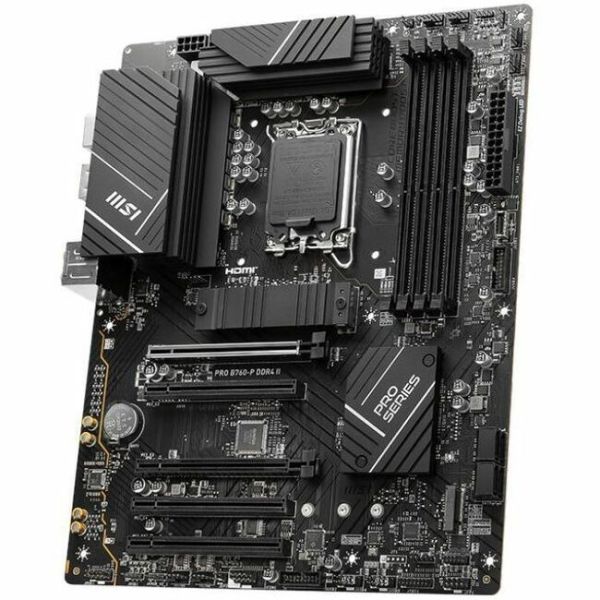

MSI PRO B760-P DDR4 II Gaming Desktop Motherboard

Marketing Information

PRO B760-P DDR4 II

PRO B760-P DDR4 II is designed with tons of flexible tools with DDR4 memory version.

BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Cooling Overview | Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal s...olution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

Specifications
Manufacturer: MSI
Manufacturer Part Number: PROB760PDDR4II
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Line: Pro
Product Model: B760-P DDR4 II
Product Name: PRO B760-P DDR4 II Gaming Desktop Motherboard
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: B760
Processor Socket: Socket LGA-1700
Processor Generation Supported:

• 14th Gen
• 13th Gen
• 12th Gen

Processor Supported:

• Core
• Pentium Gold
• Celeron

Memory
Number of Memory Slots: 4
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported:

• 5333 MHz
• 5200 MHz
• 5066 MHz
• 5000 MHz
• 4800 MHz
• 4600 MHz
• 4400 MHz
• 4266 MHz
• 4200 MHz
• 4000 MHz
• 3800 MHz
• 3733 MHz
• 3600 MHz
• 3466 MHz
• 3400 MHz
• 3333 MHz
• 3200 MHz
• 2933 MHz
• 2666 MHz
• 2400 MHz
• 2133 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
I/O Expansions
PCI Express Standard:

• PCI Express 4.0
• PCI Express 3.0

Total Number of PCI Express Slots: 5
Number of PCI Express x16 Slots: 5
Interfaces/Ports
Total Number of USB Ports: 5
Number of USB 2.0 Ports: 2
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 304.8 mm
Depth: 243.8 mm
Miscellaneous
Package Contents:

• PRO B760-P DDR4 II Gaming Desktop Motherboard
• European Union Regulatory Notice
• Quick Installation Guide
• M.2 Screw/ Standoff Set
• EZ M.2 Clip
• Sata Cable
• I/O Shield

Brand Compatibility: Intel
