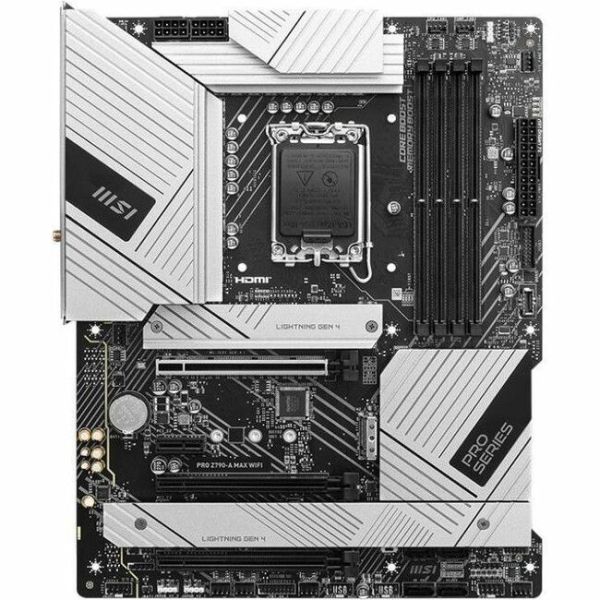

MSI PRO Z790-A MAX WIFI Gaming Desktop Motherboard

Marketing Information

PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel^®next Gen and 13th Gen Core processors.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.Extended Heatsink

• Extended Heatsink enlarges the surface of heat dissipation and maintai...n the performance at heavy loads.

M.2 Shield Frozr

• Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

• The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

• High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink

• The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

Specifications
Manufacturer: MSI
Manufacturer Part Number: PRO Z790-A MAX WIFI
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Series: PRO
Product Model: PRO Z790-A MAX WIFI
Product Name: PRO Z790-A MAX WIFI Gaming Desktop Motherboard
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: Z790
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported:

• 13th Gen
• 12th Gen

Processor Supported:

• Pentium Gold
• Celeron
• Core

Memory
Number of Memory Slots: 4
Memory Form Factor:

• UDIMM
• DIMM

Maximum Memory Supported: 192 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 7200 MHz
• 7000 MHz
• 6800 MHz
• 6600 MHz
• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5800 MHz
• 5600 MHz
• 5400 MHz
• 5200 MHz
• 5000 MHz
• 4800 MHz
• 7800 MHz
• 7600 MHz
• 7400 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of Expansion Slots: 4
PCI Express Standard:

• PCI Express 5.0
• PCI Express 4.0
• PCI Express 3.0

Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 3
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 304.8 mm
Depth: 243.8 mm
