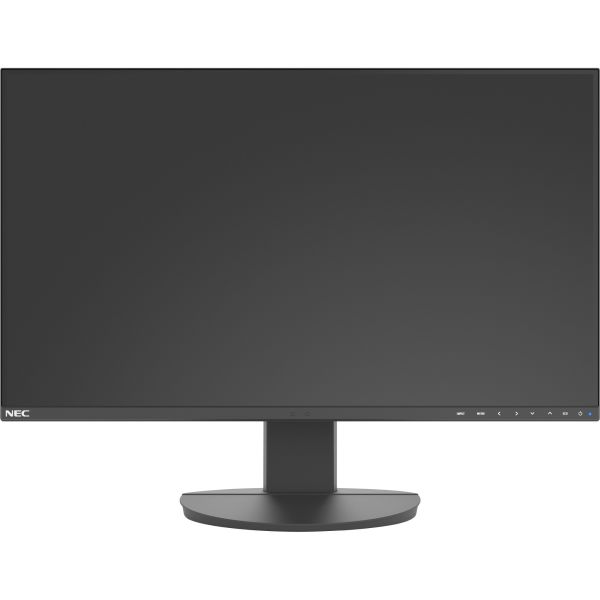

NEC Display 24" Full HD Business-Class Widescreen Desktop Monitor w/ USB-C Connectivity

Marketing Information

The 24" NEC MultiSync EA242F is a Full HD ultra-narrow bezel IPS desktop monitor ideal for corporate environments. Designed for excellent imaging and ideal for multiple monitor configurations, this widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA242F allows for a slimmer profile, lighter weight and increased power savings. This model also boasts a 150mm height-adjustable stand and full connectivity with DisplayPort, HDMI, VGA and USB Type C inputs. The EA242F includes touch-sensitive On Screen Display controls, streamlined cable management and ControlSync™ technology, which allows users to control up to six units in a mul...ti-monitor configuration.

• LED backlight technology provides for industry-leading low power consumption and less hazardous materials
• Height-adjust, pivot, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
• Full connectivity, including DisplayPort, HDMI, VGA and USB Type C inputs
• Touch-sensitive OSD® controls are integrated into the bezel, making display adjustments easier than ever
• Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, thereby conserving power
• Certified Low Blue Light and Flicker Free
• ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
• dual direction pivot and the image flip feature allow users to arrange the thinnest inactive areas together for nearly seemless images
• NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
• Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit.

Specifications
Manufacturer: Sharp
Manufacturer Part Number: 60005032
Manufacturer Website Address: http://www.sharp-nec-displays.com/
Brand Name: NEC Display
Product Line: MultiSync
Product Model: EA242F
Product Name: 24" Full HD Business-Class Widescreen Desktop Monitor w/ USB-C Connectivity
Product Type: LCD Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 24"
Viewable Screen Size: 60.5 cm (23.8")
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 5 ms
Response Time Details: 5ms GTG
Aspect Ratio: 16:9
Pixel Pitch: 0.27500 mm x 0.27500 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type:

• Wall Mountable
• Desk Mountable

Backlight Technology: WLED
HDCP Supported: Yes
Features:

• Security Lock
• Plug & Play
• Cable Management
• Flicker-free
• Ergonomic Design
• Digital Daisy Chain
• Low Blue Light
• Eco Mode
• AccuColor
• OSD/Power Lock
• Carbon Footprint Meter
• Auto Brightness Control (ABC)
• Ambient Light Sensor
• ControlSync
• Picture by Picture

Horizontal Frequency: 31.50 kHz to 83 kHz - Analog/Digital
Vertical Frequency: 50 Hz to 75 Hz
Stand Adjustments:

• Height
• Tilt
• Pivot
• Swivel

Video
Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 75 Hz
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 5,000:1
Brightness: 250 cd/m²
Color Gamut:

• 101.6% sRGB
• 75.3% Adobe RGB
• 72% NTSC

Audio
Number of Speakers: 2
Speakers: Yes
Network & Communication
Wireless LAN: No
Bluetooth: No
Interfaces/Ports
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of HDMI Inputs: 1
Number of USB Ports: 5
Number of USB 3.1 Upstream Ports: 1
Number of USB 3.1 Downstream Ports: 3
Number of DisplayPorts: 2
Total Number of USB Type-C Ports: 1
Built-in Devices
Built-in Devices: USB Hub
Power Description
Operating Power Consumption: 21 W
Standby Power Consumption: 300 mW
Energy Efficiency Class (till 28th February 2021): A+
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Colour: Black
Height: 319.1 mm
Width: 537.7 mm
Depth: 45.6 mm
Height with Stand: 486.60 mm
Width with Stand: 537.70 mm
Depth with Stand: 250 mm
Weight (Approximate): 4.50 kg
Weight with Stand (Approximate): 7 kg
Miscellaneous
Energy Star: Yes
Environmental Certification: TCO Certified Displays 8.0
Energy Efficiency Certification: ENERGY STAR 8.0
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
