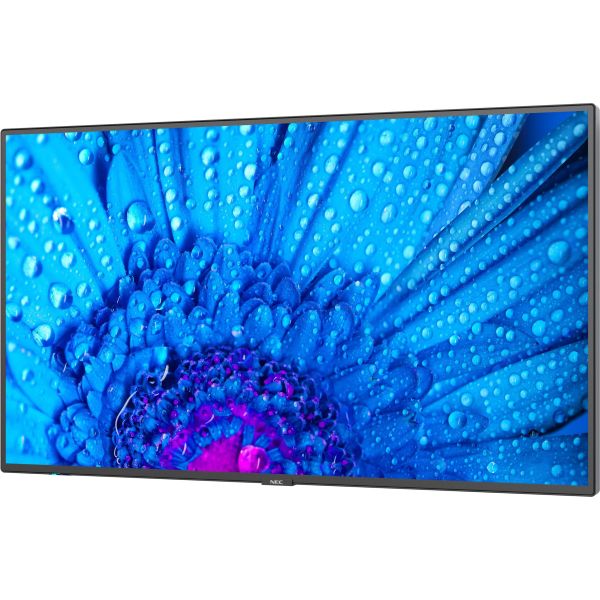

NEC Display MultiSync M861 LCD 86" Message Large Format Display

Marketing Information

Intuitive professional content delivery

Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.

With the optional NEC MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable ...functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.

Benefits

• Unhindered readability - no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation

• Enhanced imaging performance - advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.

• Mission-critical 24/7 ready operation - the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.

• Future Ready Connectivity - featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.

• Secure remote management - control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources

Specifications
Manufacturer: Sharp
Manufacturer Part Number: 60005067
Manufacturer Website Address: http://www.sharp-nec-displays.com/
Brand Name: NEC Display
Product Line: MultiSync
Product Series: M
Product Model: M861
Product Name: MultiSync M861 LCD 86" Message Large Format Display
Product Type: Digital Signage Display
Technical Information
Video Wall Compatible: Yes
Bezel Width (Bottom): 14.80 mm
Bezel Width (Top): 14.30 mm
Bezel Width (Left): 14.30 mm
Bezel Width (Right): 14.30 mm
Ingress Protection (IP) Rating:

• IP5X
• IP2X

Panel Technology: In-plane Switching (IPS) Technology
Operation Hours: 24 Hours/7 Days
Display & Graphics
Viewable Screen Size: 86"
Display Screen Type: LCD
Display Resolution: 3840 x 2160
Backlight Technology: Direct LED
Video
Scan Format: 2160p
Dynamic Contrast Ratio: 8,000:1
Colour Depth: 10-bit
Brightness: 500 cd/m²
Color Gamut: 68% DCI
Network & Communication
Ethernet: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
DisplayPort: Yes
Serial: Yes
Number of USB 2.0 Ports: 3
Number of HDMI Inputs: 2
Number of HDMI Outputs: 1
Number of DisplayPorts: 3
Software
Operating System: Raspberry Pi
Energy & Performance
Energy Efficiency Class (SDR) (from 1st March 2021): G
ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021): 193 kW
Energy Efficiency Class (HDR) (from 1st March 2021): G
ON Mode Energy Consumption per 1000Hour (HDR) (from 1st March 2021): 178 kW
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Physical Characteristics
Color Family: Black
Product Color: Black
VESA Mount Standard: 700 x 400
Mount Type: Wall Mountable
Height: 109.9 cm
Width: 192.8 cm
Depth: 8.3 cm
Weight (Approximate): 47 kg
Miscellaneous
Package Contents:

• MultiSync M861 LCD 86" Message Large Format Display
• 2x AAA batteries
• HDMI Cable
• Power Cable
• Remote Control
• Setup Manual

Application/Usage:

• Business
• Commercial

Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Energy Efficiency Certification: ENERGY STAR 8.0
