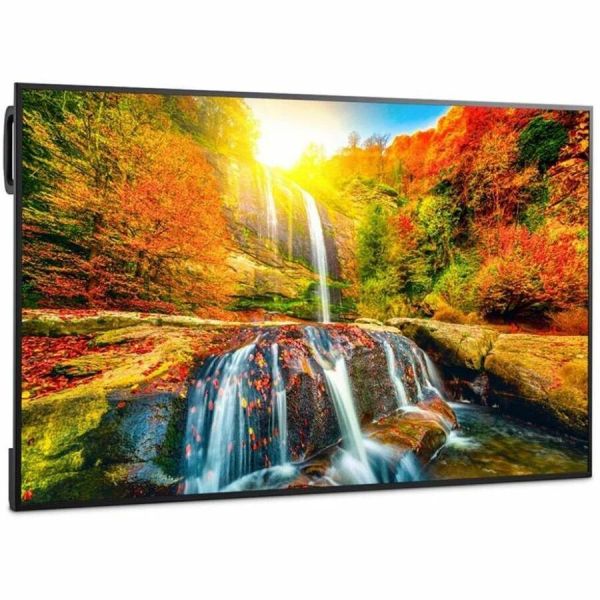

NEC Display MultiSync ME502 Digital Signage Display

Marketing Information

Class-leading performance and value

For best-in-class visual performance and value, the second generation ME series commands feature-rich professional capabilities for meeting rooms and signage applications. The multi-functional Sharp MultiSync® displays with high haze panel, native USB-C connectivity, and quick input detection appeals to Enterprise users for Bring Your Own Device simplicity, supporting hybrid workflows and spontaneous meetings.

An integrated System on Chip (SoC) with Android 13 CTS-compliant Operating System brings the most up to date features and security, powering signage applications and commanding high compatibility with CMS partners, making the multi-purpose Sharp MultiSync® ME series suita...ble for cost sensitive retail signage applications. Experience seamless access to Android apps and install apps directly on the display using the integrated browser, without the hassle and expense of an additional external media player.

Trusted long-life reliability is assured through Japanese engineering standards and high-quality components. The Sharp MultiSync® ME series is a class-leading solution for today's workplace challenges, bringing value and professional performance, without compromise.

Specifications
Manufacturer: Sharp
Manufacturer Part Number: 60005922
Manufacturer Website Address: http://www.sharp-nec-displays.com/
Brand Name: NEC Display
Product Line: MultiSync
Product Series: ME
Product Model: ME502
Product Name: MultiSync ME502 Digital Signage Display
Product Type: Digital Signage Display
Technical Information
Bezel Width: 9.90 mm
Ingress Protection (IP) Rating: IP5X
Panel Technology: Vertical Alignment (VA)
Operation Hours: 18 Hours/7 Days
Memory
Standard Memory: 4 GB
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 50"
Display Screen Type: LCD
Display Resolution: 3840 x 2160
Graphics Modes: 4K UHD
Response Time: 6 ms
Aspect Ratio: 16:9
Backlight Technology: Direct LED
Orientation: Landscape/Portrait
Video
Scan Format: 2160p
Native Contrast Ratio: 5,000:1
Colour Depth: 8-bit+FRC
Brightness: 450 cd/m²
Network & Communication
Ethernet: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
Serial: Yes
Number of USB 2.0 Ports: 3
Number of HDMI Inputs: 3
USB Type-C: Yes
RS-232C Input: Yes
Number of Audio Line Out: 1
Software
Operating System: Android 13
Energy & Performance
Energy Efficiency Class (SDR) (from 1st March 2021): G
ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021): 96 kW
Energy Efficiency Class (HDR) (from 1st March 2021): G
ON Mode Energy Consumption per 1000Hour (HDR) (from 1st March 2021): 98 kW
Power Description
Input Voltage:

• 120 V
• 230 V AC

Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Minimum Storage Temperature: -20°C
Maximum Storage Temperature: 60°C
Minimum Operating Humidity: 20%
Maximum Operating Humidity: 80%
Minimum Storage Humidity: 10%
Maximum Storage Humidity: 90%
Physical Characteristics
Bezel Color: Black
VESA Mount Standard: 400 x 400
Mount Type: Wall Mountable
Height: 63.9 cm
Width: 111.9 cm
Depth: 6.2 cm
Weight (Approximate): 11.70 kg
Miscellaneous
Package Contents:

• MultiSync ME502 Digital Signage Display
• 2 x AAA Batteries
• HDMI Cable
• Power Cable
• Remote Control
• Setup Manual

Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Energy Efficiency Certification: ENERGY STAR 8.0
