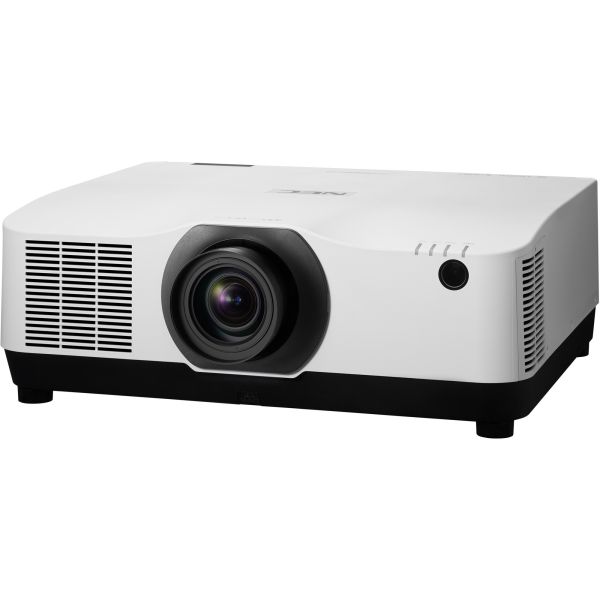

NEC Display Laser Projector

Marketing Information

A new class of silent projection

Now even larger spaces can benefit from NEC's innovation in super-silent technology with the 10,000 lumens PA1004UL laser projector, ensuring all attention is focused on the stunning image delivery.

Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.

With the newly designed sealed optical engine there is no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What's more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.

Fully compatible with previous generation lamp-based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA1004UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.

Benefits

• No lamp replacement - up to 20,000 h maintenance free operation possible due to Laser Light Source.
• No filter service required - a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
• Super Silent operation - patented sealed light engine incorporating innovative fan design not only protects against dust ingress but dramatically reduces noise.
• Impress with vivid colour & contrast - brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
• Incredible visualisation capabilities - impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.

Specifications
Manufacturer: Sharp
Manufacturer Part Number: 60004512
Manufacturer Website Address: http://www.sharp-nec-displays.com/
Brand Name: NEC Display
Product Model: PA1004UL
Product Name: Laser Projector
Product Type: 3LCD Projector
Technical Information
Projection Method:

• Front
• Ceiling

3D Type: 3D Ready
Projection Lens
Minimum Focal Length: No
Maximum Focal Length: No
Maximum Diagonal Image Size: 5 m (196.85")
Optical Zoom: No
Lamp
Number of Lamps: 1
Lamp Type: Laser/Phosphor
Normal Mode Lamp Life: 20000 Hour
Standard Mode Brightness: 10000 lm
Native Resolution: 1920 x 1200
Graphic Mode: WUXGA
Maximum Resolution: 4096 x 2160
Native Aspect Ratio: 16:10
Contrast Ratio: 300,000:1
Video
Video Signal Standard: HDTV
Output Scan Format: 1080p
Interfaces/Ports
HDMI: Yes
USB: Yes
Power Description
Operating Power Consumption: 725 W
Physical Characteristics
Product Color: White
Color Family: White
Height: 208 mm
Width: 599 mm
Depth: 490 mm
Weight (Approximate): 24.40 kg
Miscellaneous
Package Contents:

• Laser Projector
• IR Remote Control (RD-480E)
• Power Cord
• Quick Setup Guide
• Users Manual
• CD-ROM

Warranty
Limited Warranty: 3 Year
