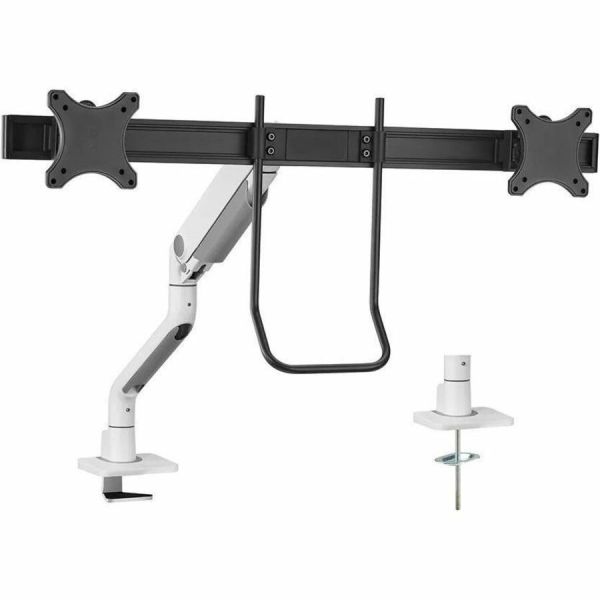

Neomounts DS75S-950WH2 Monitor Arm Desk Mount

Marketing Information

The Neomounts DS75S-950WH2 NEXT One is a full motion desk mount for two screens up to 27" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (19,1-52,7 cm) and depth adjustment (17,3-71 cm), to create the perfect working position. The displays can be individually adjusted in height, to guarantee perfect screen alignment. Additionally, due to the flexibility of the VESA heads, the screens can be positioned in large cockpit setup. The handle is height adjustable for maximum comfort.

The DS75S-950WH2... features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the DS75S-950WH2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.

Specifications
Manufacturer: Neomounts
Manufacturer Part Number: DS75S950WH2
Manufacturer Website Address: https://www.neomounts.com/
Brand Name: Neomounts
Product Line: NEXT One
Product Name: DS75S-950WH2 Monitor Arm Desk Mount
Product Type: Mounting Arm
Product Information
Device Supported:

• Monitor
• Display

Number of Displays Supported: 2
Minimum Load Capacity: 2 kg
Maximum Load Capacity: 16 kg
Minimum Screen Size Supported: 43.2 cm
Maximum Screen Size Supported: 68.6 cm (27")
Minimum Adjustable Depth: 173 mm
Maximum Adjustable Depth: 71 cm
Features:

• Grommet
• Full Motion
• Adjustable Width
• Adjustable Depth
• Gas Spring
• +/- 90° Swivel
• +/- 90° Rotation
• 360° Rotation
• Cable Management
• +/- 60° Tilt

Height Adjustable: Yes
Physical Characteristics
Color Family: White
Product Color: White
VESA Mount Compatible: Yes
Mounting Pattern:

• 75 x 75
• 100 x 100

Product Material: Aluminium
Form Factor: Desk
Height: 108.5 cm
Width: 83.3 cm
Depth: 73.9 cm
Miscellaneous
Application/Usage: Desk
Warranty
Limited Warranty: 10 Year
