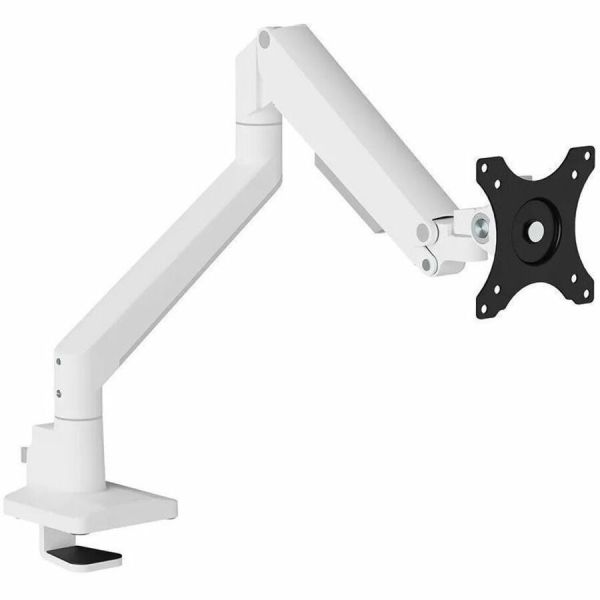

Neomounts Desk Monitor Arm

Marketing Information

The Neomounts DS70-250WH1 NEXT Slim is a full motion desk mount designed for screens up to 35" , boasting a maximum weight capacity of 9 kg suitable for both flat and curved displays. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen?s capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.

The DS70-250WH1 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management sys...tem maintains a clutter-free desk.

The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.

Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.

Specifications
Manufacturer: Neomounts
Manufacturer Part Number: DS70-250WH1
Manufacturer Website Address: https://www.neomounts.com/
Brand Name: Neomounts
Product Line: NEXT Slim
Product Name: Desk Monitor Arm
Product Type: Mounting Arm
Product Information
Device Supported:

• Flat Panel Display
• Curved Screen Display
• Monitor
• Display Screen

Number of Displays Supported: 1
Minimum Load Capacity: 1 kg
Maximum Load Capacity: 9 kg
Minimum Screen Size Supported: 43.2 cm
Maximum Screen Size Supported: 88.9 cm (35")
Minimum Adjustable Depth: 70 mm
Maximum Adjustable Depth: 52.5 cm
Features:

• Full Motion
• Adjustable Width
• Adjustable Depth
• Ergonomic
• Cable Management
• Quick Release Mechanism
• Tilt
• Grommet
• Rotate

Height Adjustment Type: Gas Spring
Height Adjustable: Yes
Minimum Tilt Angle: -45°
Maximum Tilt Angle: 45°
Minimum Swivel Angle: -90°
Maximum Swivel Angle: 90°
Minimum Rotate Angle: -180°
Maximum Rotate Angle: 180°
Physical Characteristics
Color Family: White
Product Color: White
VESA Mount Compatible: Yes
Mounting Pattern:

• 75 x 75
• 100 x 100

Product Material: Aluminium
Form Factor: Desk
Height: 55.2 cm
Width: 11.4 cm
Depth: 58 cm
Warranty
Limited Warranty: 5 Year
