Neomounts Heavy Duty TV Wall Mount

Marketing Information

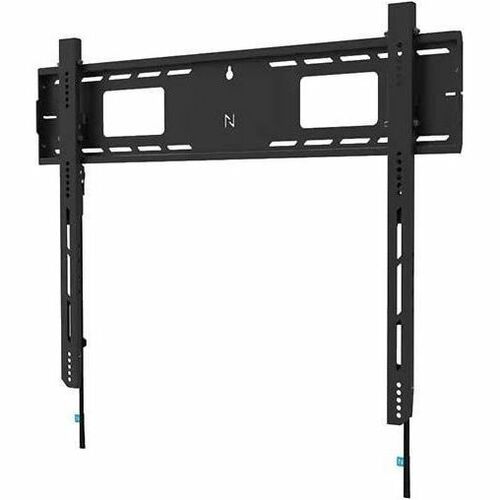

The Neomounts WL30-750BL18 LEVEL is the ultimate solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. This heavy-duty wall mount features a high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The wall mount is designed to provide the sturdiest and most stable touch screen experience. The brackets of the WL30-750BL18 feature depth adjustable wall supports on the lower brackets for better weight distribution and maximum stability. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

The LEVEL-750 wall mount has a profile depth o...f 4,2 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting, while a clever kickstand service position provides easy access to cables and connectors. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

The WL30-750BL18 includes an safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. It is possible to lock the brackets using a padlock (not included) for extra screen security.

For simple and effective storage, an optionally available AV-rack can be installed to the left or right side of the mount.

Specifications
Manufacturer: Neomounts
Manufacturer Part Number: WL30-750BL18
Manufacturer Website Address: https://www.neomounts.com/
Brand Name: Neomounts
Product Name: Heavy Duty TV Wall Mount
Product Type: Wall Mount
Product Information
Device Supported:

• TV
• Display Screen

Number of Displays Supported: 1
Maximum Load Capacity: 125 kg
Minimum Screen Size Supported: 109.2 cm
Maximum Screen Size Supported: 248.9 cm (98")
Features:

• Lockable
• Heavy Duty
• Kickstand

Mount Profile: Fixed
Height Adjustable: Yes
Physical Characteristics
Color Family: Black
Product Color: Black
VESA Mount Compatible: Yes
Mounting Pattern:

• 100 x 100
• 100 x 150
• 100 x 200
• 120 x 120
• 200 x 100
• 200 x 200
• 200 x 300
• 200 x 400
• 300 x 100
• 300 x 200
• 300 x 300
• 350 x 350
• 400 x 200
• 400 x 300
• 400 x 400
• 400 x 500
• 400 x 600
• 440 x 400
• 500 x 400
• 600 x 200
• 600 x 300
• 600 x 400
• 600 x 500
• 600 x 600
• 680 x 300
• 800 x 200
• 800 x 400
• 800 x 500
• 800 x 600

Product Material: Steel
Form Factor: Wall Mountable
Height: 68.4 cm
Width: 88.6 cm
Depth: 4.2 cm
Weight (Approximate): 1 kg
Warranty
Limited Warranty: 5 Year
