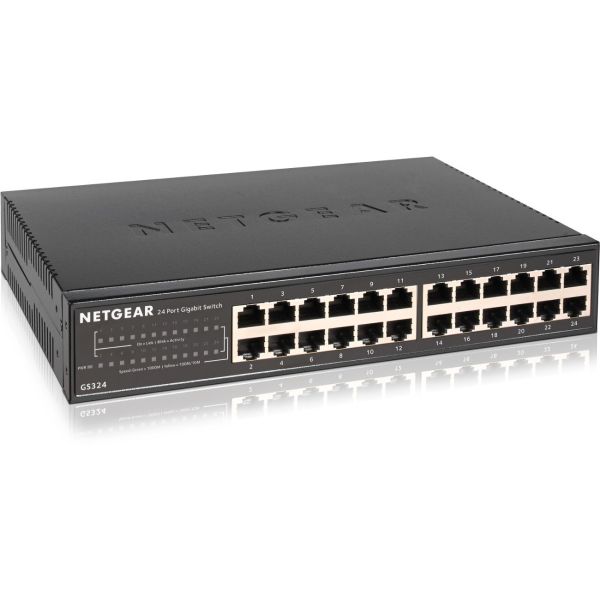

Netgear SOHO GS324 Ethernet Switch

Marketing Information
Expanding Wired Connectivity for SOHO Networks

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices.

With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

Highlights

• Auto-MDI/MDIX eliminates the need for crossover cables
• LED indicators for ease of use
• Energy-efficient technology for power savings
• Fanless design for silent operation (excep...t GS348)
• Auto-negotiation for automatic connection at the highest common speed between switch and an end device
• Non-blocking switching architecture for maximum throughput at wire speed
• 802.1p QoS for traffic/frame prioritization
• Plug-and-play; no setup required
• Durable and rugged metal case
• Desktop or wall-mountable (5, 8, 16-port models); GS324 is desktop, wall-mountable, and rack-mountable (rack-mount kit included); GS348 is rackmountable (rack-mount kit included)
• Ideal for small office and home networks
• Standards-based technology ensures interoperability with any standardsbased devices in the existing network

Specifications
Manufacturer: Netgear, Inc
Manufacturer Part Number: GS324-200EUS
Manufacturer Website Address: http://www.netgear.co.uk
Brand Name: Netgear
Product Series: 300
Product Model: GS324
Product Name: SOHO GS324 Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Power Consumption: 12.10 W
Physical Characteristics
Form Factor:

• Desktop
• Wall Mountable
• Rack-mountable

Height: 44 mm
Width: 252 mm
Depth: 180 mm
Weight (Approximate): 1.21 kg
Miscellaneous
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
