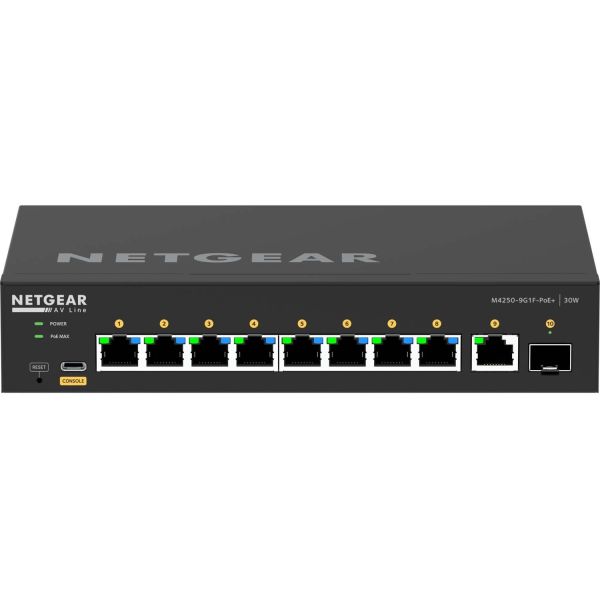

Netgear AV Line M4250 GSM4210PD Ethernet Switch

Marketing Information

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!

POWERFUL AV SWITCHES MADE SIMPLE

Pre-configured to get you up and running faster

M4250 AV OVER IP SIMPLIFIED | Groundbreaking AV GUI

A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design

Less fan noise, and mounting ears included for under-table or wall mounting.

Automatic Configuration...

Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

MAXIMIZE PERFORMANCE WITH NETGEAR ACCESS POINTS

Enable powerful, reliable WiFi at your location with WAX600 Series PoE access points

PRO AV RESOURCES

All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.

Specifications
Manufacturer: Netgear, Inc
Manufacturer Part Number: GSM4210PD100EUS
Manufacturer Website Address: http://www.netgear.co.uk
Brand Name: Netgear
Product Line: AV Line
Product Series: M4250
Product Model: GSM4210PD
Product Name: AV Line M4250 GSM4210PD Ethernet Switch
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 10
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x Ethernet PoE+
• 1 x Gigabit Ethernet PoE+
• 1 x SFP 1Gigabit

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 1.0
Expansion Slot Type: SFP
Number of SFP Slots: 1
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.1as
• IEEE 802.1Qav
• IEEE 802.1Qat
• IEEE 802.1ak
• IEEE 802.3az

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 110 W
Power Source: Power Adapter
Physical Characteristics
Form Factor: Desktop
Height: 40 mm
Width: 210 mm
Depth: 140 mm
Weight (Approximate): 965 g
