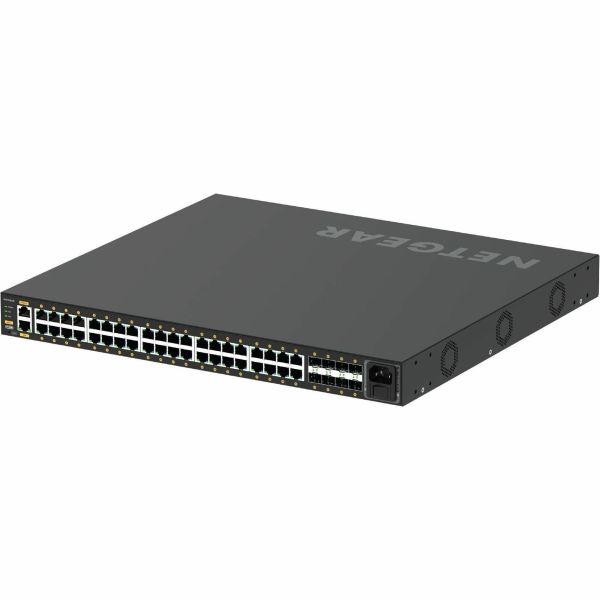

Netgear AV Line M4250-40G8F-PoE+ Ethernet Switch

Marketing Information

Switching Engineered for AV over IP

Introducing the NETGEAR AV Line of M4250 Switches, developed and engineered for audio/video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market, combining years of networking expertise in AV with M4300 and M4500 series with best practices from leading experts in the professional AV market. AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of M4250 targets the widespread 1Gbps codecs.

PoE+, Ultra90 PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offer...s customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante etc. as well as audio/ video/control mixed profiles. When multiple switches are used, NETGEAR IGMP PlusTM brings automation for you to just connect them together, or with M4300 and M4500 switches.

Specifications
Manufacturer: Netgear, Inc
Manufacturer Part Number: GSM4248P-100EUS
Manufacturer Website Address: http://www.netgear.co.uk
Brand Name: Netgear
Product Line: AV Line
Product Series: M4250
Product Model: M4250-40G8F-PoE+
Product Name: AV Line M4250-40G8F-PoE+ Ethernet Switch
Product Type: Ethernet Switch
Technical Information
Features:

• Energy Efficient
• DHCP Snooping
• Dynamic ARP Inspection
• Scripting
• Strict Priority Queuing (SPQ)
• Access Control List
• DHCP Relay
• Plug and Play

Interfaces/Ports
Total Number of Network Ports: 40
Uplink Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 40 x Gigabit Ethernet PoE+ RJ-45 Network Port
• 8 x 10 Gigabit Ethernet SFP Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10/100/1000Base-T
• 10GBase-X
• 1000Base-X

Maximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
Total Number of Expansion Slots: 8
Expansion Slot Type: SFP
Number of SFP+ Slots: 8
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.3bt
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.1as
• IEEE 802.1Qav
• IEEE 802.1Qat
• IEEE 802.1ak
• IEEE 802.3az
• IEEE 802.3ad
• IEEE 802.1AX
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.1BA
• IEEE 802.1x
• IEEE 802.3x
• IEEE 802.3
• IEEE 802.1D
• IEEE 802.1ab
• IEEE 802.3ac
• IEEE 802.3ae

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 480 W
Power Source: Power Supply
Number of Power Supplies Installed: 1
Power Consumption: 624.80 W
Plug/Connector Type: C14
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Rack-mountable
• Table Top

Height: 43.2 mm
Width: 440 mm
Depth: 400 mm
Weight (Approximate): 5.85 kg
Miscellaneous
Package Contents:

• AV Line M4250-40G8F-PoE+ Ethernet Switch
• Power Cord(s)
• RJ45 Straight-through Wiring Serial Console Cable to DB9
• USB Type-C to USB-A 2.0 Console Cable
• Rubber Caps for the SFP/SFP+ Sockets
• Rubber Footpads for Tabletop Installation
• Installation Guide
• 2 x Regular (Short) Brackets and Screws for Two-post Rack Mount (for Front Posts) Allowing for Mounting with Ports on the Back, or Ports On the Front of the Rack
• 2 x Longer Brackets for Two-post Rack Mount (for Front Posts) Recessing the Switch by 2 Inches in Order to Make Room for the Cabling

Application/Usage:

• Network
• Enterprise
• Campus
• IoT Devices
• Security
• Router

Warranty
Limited Warranty: Lifetime
