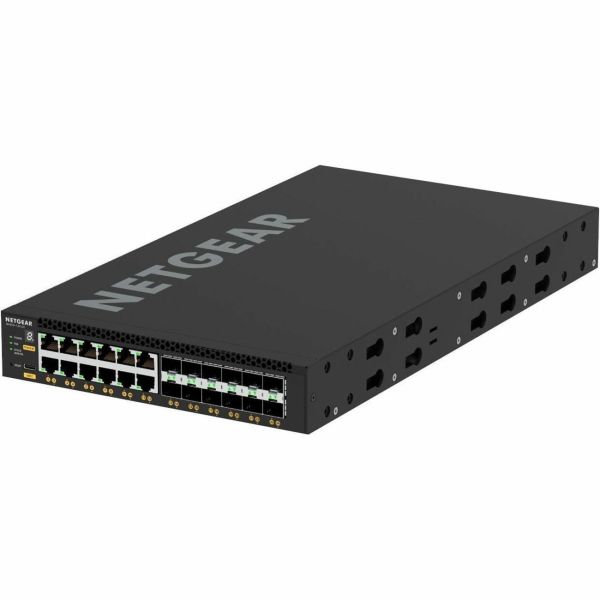

Netgear AV Line M4350-12X12F Ethernet Switch

Marketing Information

Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.

NETGEAR listens to and supports the Pro AV community

• IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network
• Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
...> The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations
• NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
• AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
• SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI

Enterprise-class hardware

• From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
• Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)

Other IT use cases

• Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
• Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack

Industry standard management

• Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
• SNMP, sFlow and RSPAN - the entire feature set is available without license

Industry leading warranty

• NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
• 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Specifications
Manufacturer: Netgear, Inc
Manufacturer Part Number: XSM4324100NES
Manufacturer Website Address: http://www.netgear.co.uk
Brand Name: Netgear
Product Line: AV Line
Product Series: M4350
Product Model: M4350-12X12F
Product Name: AV Line M4350-12X12F Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 12
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details:

• 12 x 10 Gigabit Ethernet Expansion Slots
• 12 x 10 Gigabit Ethernet Network

Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 10 Gigabit Ethernet
Network Technology:

• 10GBase-X
• 10GBase-T

I/O Expansions
Total Number of Expansion Slots: 12.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 12
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.3bt
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.1as
• IEEE 802.1Qav
• IEEE 802.1Qat
• IEEE 802.1ak
• IEEE 802.3az
• IEEE 802.3ad
• IEEE 802.1AX
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.1BA

Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Power Consumption: 240 W
Plug/Connector Type: C14
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Rack-mountable
• Table Top

Height: 432 mm
Width: 4000 mm
Depth: 220 mm
Weight (Approximate): 4.30 kg
Miscellaneous
Application/Usage:

• Enterprise
• Business
• Network
• IP Phone
• VoIP Phone
