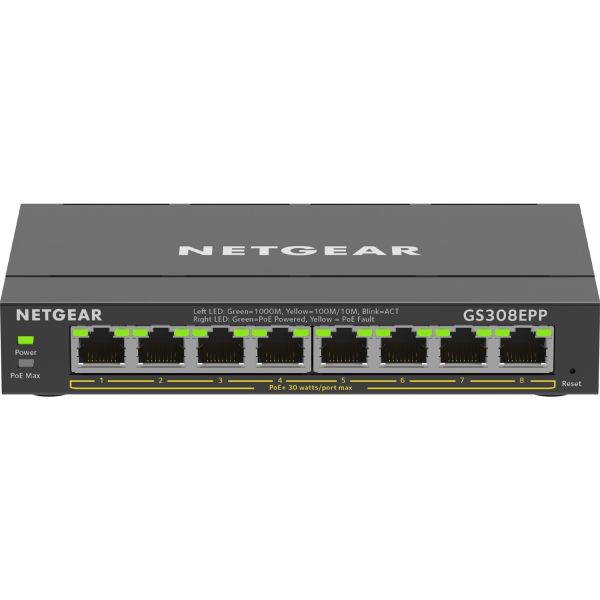

Netgear PoE+ Gigabit Ethernet Plus Switches

Marketing Information

NETGEAR Plus Switches with PoE meets business networks growing need by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plugand-play unmanaged switch, delivering essential networking features at a very affordable price. These models support Power-Over-Ethernet (PoE) and can power devices such as VOIP phones, surveillance IP cameras, wireless access points and many other applications. These new PoE+ Gigabit Ethernet Plus switches models include uninterruptable PoE to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows ea...sy management and simple configuration. With the growing deployment of applications and an all-inone solution, providing management and power to these applications would be ideal

Highlights

• Enable network configuration and management at the price point of unmanaged switches
• Simple, yet useful network set-up on top of plug-and-play connectivity
• Business-friendly and easy-to-use web browser-based management GUI
• VLAN support for traffic segmentation
• Quality of Service (QoS) for traffic prioritization
• Auto "denial-of-service" (DoS) prevention
• Troubleshoot connection issues via cable test
• Loop prevention1 , loop detection2 , and broadcast storm controls
• Rate limiting for better bandwidth allocation
• Port mirroring for network monitoring
• Jumbo frame support
• Advanced features such as per port PoE controls
• Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing software reboot.
• 802.3at standard offering 30W/port
• Fanless and versatile mounting option (desktop and wall-mountable)

Specifications
Manufacturer: Netgear, Inc
Manufacturer Part Number: GS308EPP-100UKS
Manufacturer Website Address: http://www.netgear.co.uk
Brand Name: Netgear
Product Line: Business
Product Model: GS308EPP
Product Name: PoE+ Gigabit Ethernet Plus Switches
Product Type: Ethernet Switch
Technical Information
Features:

• Energy Efficient
• Plug and Play
• Fanless

Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Port/Expansion Slot Details: 8 x Gigabit Ethernet PoE+
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.3az
• IEEE 802.1Q
• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3u
• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at

Management & Protocols
Manageable: No
Reliability
MTBF: 842428 Hour
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 123 W
Power Source: Power Adapter
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Metal
Form Factor:

• Desktop
• Wall Mountable

Height: 27 mm
Width: 158 mm
Depth: 101 mm
Weight (Approximate): 490 g
Miscellaneous
Package Contents:

• PoE+ Gigabit Ethernet Plus Switches
• Power Adapter
• Wall Installation Kit
• Rubber Feet
• Installation Guide

Application/Usage:

• Wireless Access Point
• Network
• Business
• VoIP Phone
• Surveillance
• Camera
• Router
• Laptop
• IP Camera
• Small Office
• Home Office

Warranty
Limited Warranty: 5 Year
