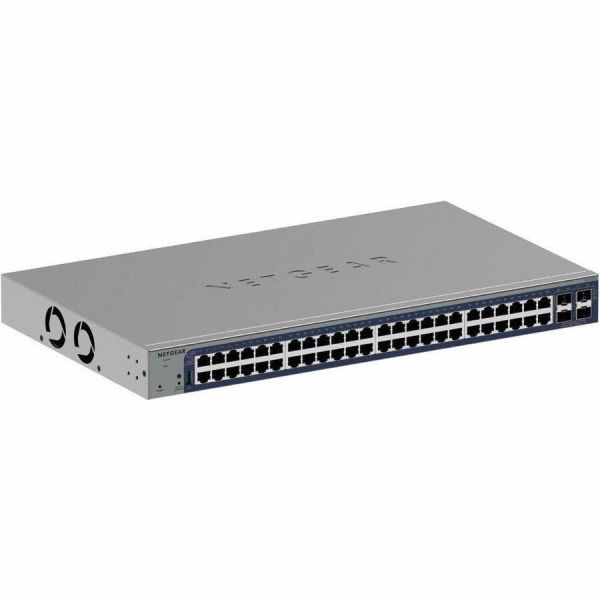

Netgear Business GS752TXUPv3 Ethernet Switch

Marketing Information

Powerful 24-port and 48-port Gigabit switches with 4 dedicated 10G SFP+ uplinks and Remote/Cloud Management option - Select your new network engine!

As a leading provider of network equipment for businesses, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business' needs, whether in the hospitality, catering, education or retail domains.

The Gigabit Ethernet Switches with 4 SFP+ Ports join the NETGEAR Smart switches with Cloud family, adding full 24 and 48 port PoE+ and PoE++ support for organizations that deploy high-density PoE devices and require a powerful interconnect link between access and aggregation.

Organizations who buy infrastructure fo...r the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 190W and 420W over 24-port, or 380W and 640W over 48-port providing more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the 24- port models support quiet rack mounting operation with a maximum of 30.5dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the 52-port models are rated at no more than 37.3dBA. |

Highlights

The NETGEAR Gigabit Ethernet Switches with 4 SFP+ Ports with Remote/Cloud Management provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoEbased VoIP phones, IP cameras, videoover-IP endpoints and Wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks.

Specifications
Manufacturer: Netgear, Inc
Manufacturer Part Number: GS752TXUP-300EUS
Manufacturer Website Address: http://www.netgear.co.uk
Brand Name: Netgear
Product Line: Business
Product Model: GS752TXUPv3
Product Name: Business GS752TXUPv3 Ethernet Switch
Product Type: Ethernet Switch
Technical Information
Features:

• DHCP Snooping
• Remote/Cloud Management
• Access Control List
• Energy Efficient
• Zero-Touch Provisioning (ZTP)
• VLAN Segmentation
• Dynamic ARP Inspection
• Remote Monitoring (RMON)
• DHCP Relay

Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 32 x 10/100/ 1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port
• 16 x 10/100/ 1000BASE-T Gigabit Ethernet PoE++ RJ-45 Network Port
• 4 x 1000/10GBASE-X Gigabit Ethernet SFP+ Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10GBase-X
• 10/100/1000Base-T
• 1000Base-X

Maximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.1x
• IEEE 802.1Q
• IEEE 802.3ad
• IEEE 802.3x
• IEEE 802.1p
• IEEE 802.3az
• IEEE 802.11ac
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.1ab
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3at
• IEEE 802.3bt

Management & Protocols
Manageable: Yes
Reliability
MTBF: 191643 Hour
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 640 W
Power Source:

• Power Supply
• PoE+
• PoE++

Number of Power Supplies Installed: 1
Power Consumption: 763 W
Physical Characteristics
Form Factor:

• Rack-mountable
• Desktop
• Table Top

Height: 43.2 mm
Width: 439.4 mm
Depth: 315 mm
Weight (Approximate): 4.79 kg
Miscellaneous
Package Contents:

• Business GS752TXUPv3 Ethernet Switch
• AC Power Cord With C13 Connector
• Brackets and Screws For Rack Mounting
• Rubber Footpads For Tabletop Installation
• Rubber Protection Caps
• Installation Guide

Application/Usage:

• Network
• Wireless Access Point
• IP Camera
• IoT Devices
• VoIP Phone
• Business
• Server
• Security Camera
• Security
• Router
• Surveillance
• IP Phone
• Small Business

Certifications & Standards:

Electromagnetic Emissions and Immunity

• CE
• FCC Class A
• RCM
• ICES Class A
• VCCI
• KC
• BSMI
• UKCA

Safety

• CB
• CE
• CSA
• RCM
• KC
• BSMI

Warranty
Limited Warranty: Lifetime
