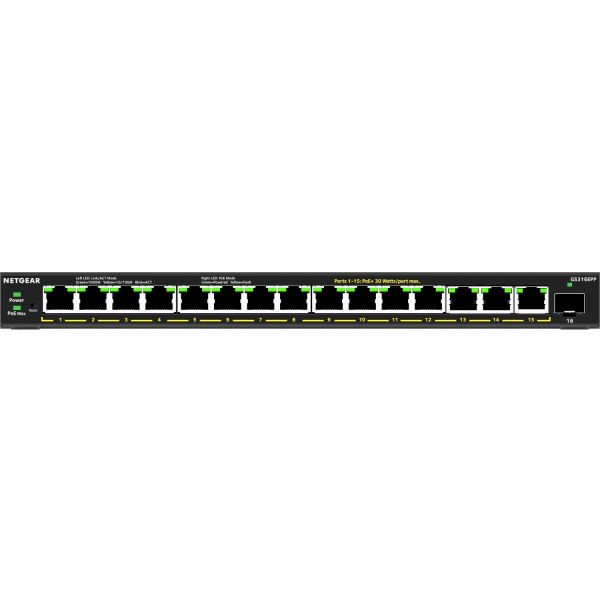

Netgear GS316EPP Ethernet Switch

Marketing Information
NETGEAR Plus Switches with PoE meets business networks growing need by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plugand-play unmanaged switch, delivering essential networking features at a very affordable price. These models support Power-Over-Ethernet (PoE) and can power devices such as VOIP phones, surveillance IP cameras, wireless access points and many other applications. These new PoE+ Gigabit Ethernet Plus switches models include uninterruptable PoE to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy ...management and simple configuration. With the growing deployment of applications and an all-inone solution, providing management and power to these applications would be ideal.

Highlights

• Enable network configuration and management at the price point of unmanaged switches
• Simple, yet useful network set-up on top of plug-and-play connectivity
• Business-friendly and easy-to-use web browser-based management GUI
• VLAN support for traffic segmentation
• Quality of Service (QoS) for traffic prioritization
• Auto "denial-of-service" (DoS) prevention
• Troubleshoot connection issues via cable test
• Loop prevention, loop detection, and broadcast storm controls
• Rate limiting for better bandwidth allocation
• Port mirroring for network monitoring
• Jumbo frame support
• Advanced features such as per port PoE controls
• Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing software reboot.
• 802.3at standard offering 30W/port
• Fanless and versatile mounting option (desktop and wall-mountable)

Specifications
Manufacturer: Netgear, Inc
Manufacturer Part Number: GS316EPP-100UKS
Manufacturer Website Address: http://www.netgear.co.uk
Brand Name: Netgear
Product Model: GS316EPP
Product Name: GS316EPP Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 15
Modular: Yes
Port/Expansion Slot Details:

• 15 x Gigabit Ethernet PoE+
• 1 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 1.0
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 1
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 231 W
Power Source: Power Adapter
Physical Characteristics
Form Factor:

• Desktop
• Wall Mountable

Height: 27 mm
Width: 286 mm
Depth: 102 mm
Weight (Approximate): 883 g
Miscellaneous
Package Contents:

• GS316EPP Ethernet Switch
• Power Adapter
• Wall Installation Kit
• Rubber Feet
• Installation Guide

Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 5 Year
