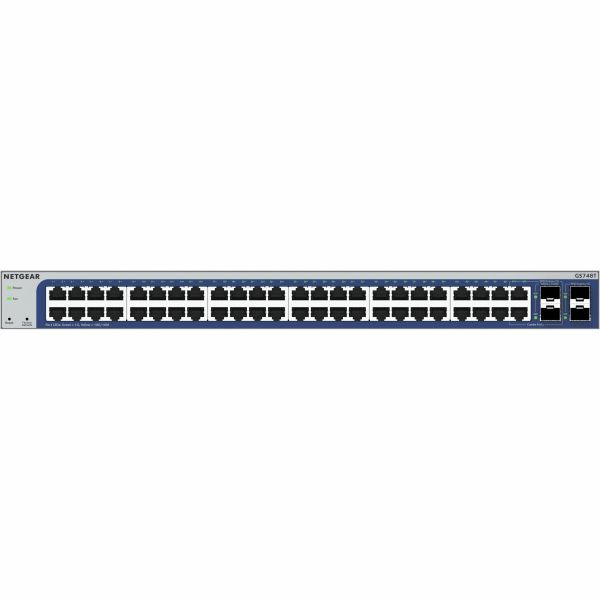

Netgear 48-Port Gigabit Ethernet Smart Switch With 2 Copper/SFP Combo Ports and 2 Dedicated SFP Ports

Marketing Information

The NETGEAR new GS748Tv6 Gigabit Smart switch offers new, powerful L2+/ Layer 3 Lite features with enhanced performance and usability. It is purposely designed for the future where increased traffic and application-oriented tasks demands more intelligence at the edge, higher realiability and improved network efficiency on top of operational cost savings and ease of management.

The GS748T comes with 48 Gigabit Ethernet ports with 2 dedicated Gigabit SFP and 2 combo copper/SFP ports, all with increased number of simultaneously connected ports.

This new Gigabit Smart switch GS748Tv6 with Remote/Cloud Management from NETGEAR is the optimized solution providing the best value at an affordable SMB price point.

Designed for C...onverged Network, Big or Small

• Gigabit speed with non-blocking architecture supporting 100% Gigabit throughput
• Auto Voice VLAN for fast and reliable deployment of VoIP
• Auto Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance system
• Static routing, helps to route internal traffic for more efficient use of network resources
• IGMP and MLD snooping, providing advanced multicast filtering

Build a Future-proof Network with NETGEAR

• Solid performance with nonblocking architecture, 16K MAC addresses, 256 VLANs, 100 shared ACL entries, 32static routes, and 512 Multicast Groups
• Comprehensive IPv6 supporting management, QoS and ACL, ensuring investment protection and a smooth migration to IPv6-based network
• Up to 4 SFP ports offer more connectivity ports and providing better value and usability at no extra cost
• Energy Efficient Ethernet (IEEE802.3az) support for more energy saving in the future when more IEEE-compliant end devices come to market
• Advanced QoS with IPv4/ IPv6 traffic filtering and prioritization
• Dynamic VLAN assignment for easy user authentication and location-independent access to network
• Multicast VLAN Registration for eliminating unnecessary multicast traffic and improve the efficiency of network utilization

Network Development Made Easy

• Auto Voice VLAN for easy development of VoIP
• Auto Video for simple deployment of IP Surveillance
• ACL Wizard for a guided tour to set up your network access control

Fully-integrated cloud-manageable devices

• Remote/Cloud Management capability with NETGEAR Insight. Instantly activate NETGEAR Insight Cloud management from the web GUI, for simpler configuration and deployment from anywhere using the NETGEAR Insight app on mobile devices or the Insight Cloud portal through a web browser

Small IT, not Big IT

• Easy to manage via web-based management GUI for multi-switch deployment
• Standard-based technology, ensuring interoperability with any standard-based devices in the existing network
• Dual firmware images, improving reliability and uptime to your network
• Worry-free with NETGEAR limited lifetime hardware warranty

Specifications
Manufacturer: Netgear, Inc
Manufacturer Part Number: GS748T-600EUS
Manufacturer Website Address: http://www.netgear.co.uk
Brand Name: Netgear
Product Model: GS748Tv6
Product Name: 48-Port Gigabit Ethernet Smart Switch With 2 Copper/SFP Combo Ports and 2 Dedicated SFP Ports
Product Type: Ethernet Switch
Technical Information
Features: Energy Efficient
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 48 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port
• 4 x 100/1000 Gigabit Ethernet SFP Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

Maximum Data Transfer Rate: 125 MB/s
I/O Expansions
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP
Number of SFP Slots: 4
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.3
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.1Q
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.3ae
• IEEE 802.3ad
• IEEE 802.1ab
• IEEE 802.1p
• IEEE 802.1D
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.3az

Management & Protocols
Manageable: Yes
Reliability
MTBF: 390728 Hour
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Power Consumption: 41.10 W
Physical Characteristics
Form Factor: Rack-mountable
Height: 43 mm
Width: 440 mm
Depth: 257 mm
Weight (Approximate): 3.46 kg
Miscellaneous
Package Contents:

• 48-Port Gigabit Ethernet Smart Switch With 2 Copper/SFP Combo Ports and 2 Dedicated SFP Ports
• Power cord
• Rack mount kit
• Installation guide

Application/Usage:

• PC
• Wireless Access Point
• Surveillance

Certifications & Standards:

Electromagnetic Emissions and Immunity

• CE mark
• Commercial FCC Part 15 Class A
• VCCI Class A ICES-003 Class A
• KC class A, UKCA class A
• BSMI class A RCM class A

Safety

• CE
• UKCA
• CB
• CSA
• RCM
• BSMI

Warranty
Limited Warranty: Lifetime
