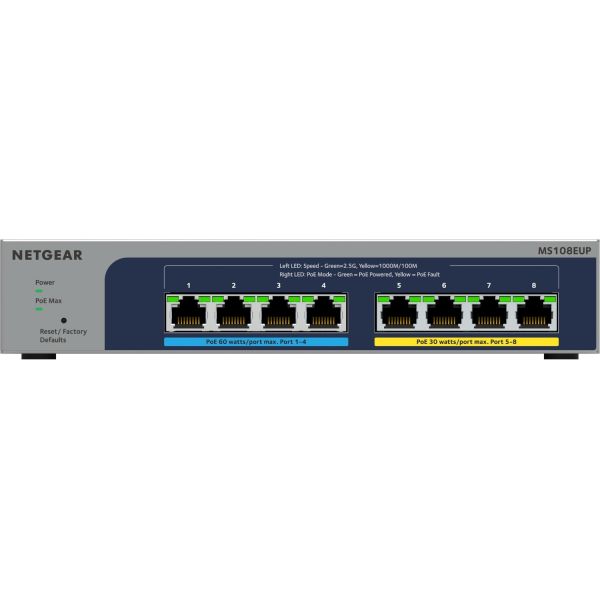

Netgear 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch

Marketing Information
High-speed and Powerful Network with a Compact Switch

NETGEAR Plus Switches with PoE meet business networks growing needs by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price. The new model MS108EUP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other applications. This new Plus switch includes advance PoE ...control to help optimize the performance and troubleshooting of business networks. The new and improved businessfriendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-in-one solution, providing management and power to these applications would be ideal.

Highlights

• 802.3bt standard offering up to 60W/ port on Port 1-4, 802.3at (30W/port) on Port 5-8
• Enable network configuration and management at the price point of Unmanaged Switches
• Simple, yet useful network set-up on top of plug-and-play connectivity
• Business-friendly and easy-to-use web browser-based management GUI
• VLAN support for traffic segmentation
• Quality of Service (QoS) for traffic prioritization
• Auto "denial-of-service" (DoS) prevention
• Troubleshoot connection issues via cable test
• Energy Efficient Ethernet (IEEE 802.3az) support for maxium power savings
• Loop prevention and broadcast storm controls
• Rate limiting for better bandwidth allocation
• Port mirroring for network monitoring
• Jumbo frame support
• Advanced features such as per port PoE controls
• Fanless, silent operation with desktop and wall-mount options
• Lifetime 24/7 Chat Technical Support
• Next-Business-Day Hardware Replacement
• Limited Lifetime Hardware Warranty

Specifications
Manufacturer: Netgear, Inc
Manufacturer Part Number: MS108EUP-100EUS
Manufacturer Website Address: http://www.netgear.co.uk
Brand Name: Netgear
Product Model: MS108EUP
Product Name: 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Network (RJ-45): Yes
Port/Expansion Slot Details: 8 x Gigabit Ethernet PoE++
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: 2.5 Gigabit Ethernet
Network Technology: 2.5GBase-T
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3u
• IEEE 802.1p
• IEEE 802.3az
• IEEE 802.3ad
• IEEE 802.1Q
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3bt

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 230 W
Power Source: Power Adapter
Number of Power Supplies Installed: 1
Physical Characteristics
Product Material: Metal
Form Factor:

• Wall Mountable
• Desktop

Height: 40 mm
Width: 210 mm
Depth: 140 mm
Weight (Approximate): 900 g
Miscellaneous
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
