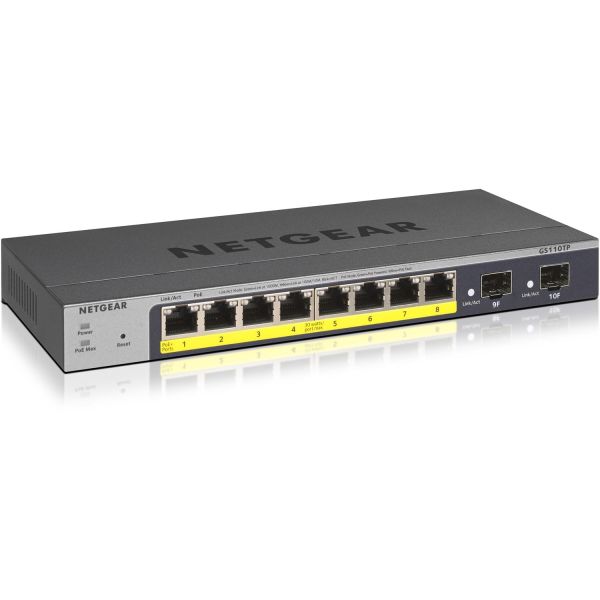

Netgear ProSafe GS110TPv3 Ethernet Switch

Marketing Information
Small, Yet Powerful Gigabit Smart Switch Packed with Advanced Features

Joining the NETGEAR® ProSAFE® family of Smart Managed Switches with high performance and cost efficiency, this 10-port Gigabit Smart Managed Switch is packed with powerful L2 features capable of enhancing any type of business network. The GS110TP is designed for customers who need a low port density solution with the combination of Gigabit speed and PoE capability. The GS110TP comes with 8 dedicated 10/100/1000 Mbps copper ports to connect to your end devices and two additional Gigabit Fiber ports for uplinks with greater distance. With PoE capability on all 8 copper ports, the GS110TP can automatically detect PoE on the end devices and dynamicall...y manage power assignments and priority. It is capable of delivering up to 15.4W of power per port, up to a maximum total of 46W across all connected PoE devices, and network connectivity concurrently across a single ethernet cable, to power devices such as wireless access points, IP phones and IP cameras, providing flexibility and ease of deployment to your network.

The GS110TP comes with a comprehensive set of features, such as enhanced VLAN and QoS, access control lists (ACL), 802.1x port authentication (MD5), rate limiting and IGMP snooping and many more, to provide businesses with networks that are geared for growth while ensuring performance and reliability. Both an intuitive Web-browser GUI interface and Smart Control Center (Windows PC required), offer simple Smart Managed Switch management, making it a snap to monitor switch performance, configure ports, even set up port trunks, VLANs, and traffic prioritization.

With the fanless design and compact form factor, the GS110TP offers quiet operation and is suitable for deployments in any type of environment, especially the ones which are sensitive to noise.
Specifications
Manufacturer: Netgear, Inc
Manufacturer Part Number: GS110TP-300EUS
Manufacturer Website Address: http://www.netgear.co.uk
Brand Name: Netgear
Product Line: ProSafe
Product Model: GS110TPv3
Product Name: ProSafe GS110TPv3 Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet PoE+
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 2
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Adapter
Physical Characteristics
Form Factor:

• Desktop
• Wall Mountable

Height: 27 mm
Width: 236 mm
Depth: 101 mm
Weight (Approximate): 610 g
Miscellaneous
Country of Origin: China
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
