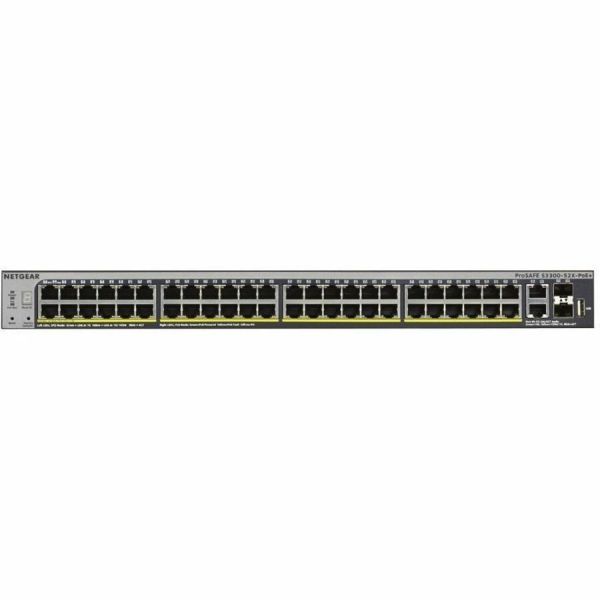

Netgear S3300-52X-PoE+ Ethernet Switch

Marketing Information

The S3300 Series are a new generation of Gigabit Stackable Smart Managed Pro Switches inclusive of 4 10G ports, which can be used for uplinks and/or stacking between other S3300 switches. Mixed stacking with select M4300 10G switches (12X12F and 24X) allows 10G architecture that can both scale as organization networks grows and be powerful enough for server and storage applications. As SMBs produce and consume more data, Gigabit to the desktop increasingly needs to be underpinned with 10GbE connectivity to the core to ensure a consistent, seamless user experience. This new generation of switches provides SMB customers with the most cost-effective 10G connections between the access and aggregation layer of the network.

The S3300 Smart... Managed Pro Stackable Series is the blueprint for a dependable future-proof network. From greenfield network requirements to network refresh projects, the S3300 series sets new standards in defining flexibility and choice for SMBs looking to leverage reliable, future proof technologies at affordable price points. Packed with rich enterpriseclass feature sets and advanced security measures, it is the only advanced smart managed switch platform to offer both dedicated 10GBASE-T and SFP+ uplink and stacking connectivity in both PoE+ and non PoE configurations - a combination that delivers an unrivalled and powerful interconnect solution for access to core connectivity.

With a choice of 24 or 48 port models, these switches can deliver on demanding tasks such as data replication and backup, video on demand and high volume transaction processing.

Specifications
Manufacturer: Netgear, Inc
Manufacturer Part Number: GS752TXP-300EUS
Manufacturer Website Address: http://www.netgear.co.uk
Brand Name: Netgear
Product Series: S3300
Product Model: S3300-52X-PoE+
Product Name: S3300-52X-PoE+ Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 50
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 48 x Gigabit Ethernet PoE+
• 2 x 10 Gigabit Ethernet Expansion Slot
• 2 x 10 Gigabit Ethernet Network

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 1000Base-T
• 10GBase-T
• 10GBase-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 4
Networking Standards:

• IEEE 802.1x
• IEEE 802.1Q
• IEEE 802.3ad
• IEEE 802.3x
• IEEE 802.1D
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1ab
• IEEE 802.1p
• IEEE 802.1as
• IEEE 802.1Qat
• IEEE 802.3an
• IEEE 802.1BA
• IEEE 802.3i
• IEEE 802.1Qav
• IEEE 802.3z
• IEEE 802.3ae

Management & Protocols
Manageable: Yes
Reliability
MTBF: 216809 Hour
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 390 W
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Power Consumption: 748.18 W
Physical Characteristics
Form Factor: Rack-mountable
Height: 43 mm
Width: 440 mm
Depth: 345 mm
Weight (Approximate): 5.54 kg
Miscellaneous
Package Contents:

• S3300-52X-PoE+ Ethernet Switch
• Power Cord
• Rack-mounting Kit
• Hardware Installation Guide

Application/Usage: Network
Certifications & Standards:

• CE: EN 55032:2012+AC:2013/CISPR 32:2012
• EN 61000-3-2:2014, Class A, EN 61000-3-3:2013, EN 55024:2010
• UL listed (UL 1950)/cUL IEC 950/EN 60950
• CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
• RCM (AS/NZS) 60950.1:2015
• CCC (China Compulsory Certificate): GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A)
• BSMI: CNS 14336-1
• CB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

Warranty
Limited Warranty: Lifetime
