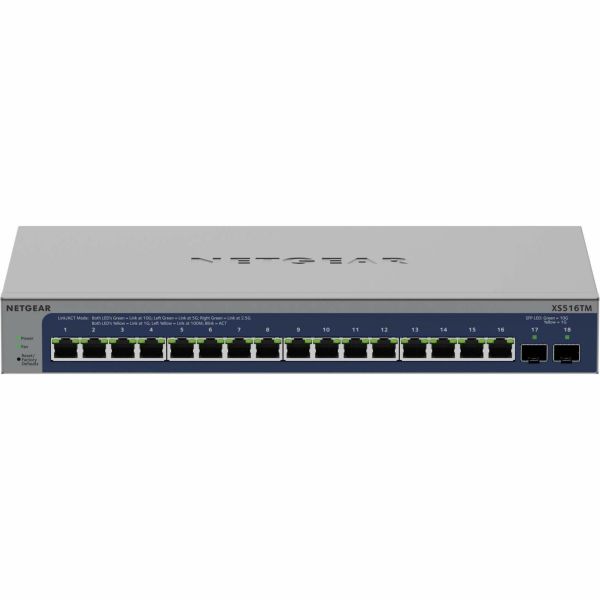

Netgear Smart S3600 XS516TM Ethernet Switch

Marketing Information

As a leading provider of network equipment, NETGEAR® Business understands the importance of providing a great choice of speed and power to support core business needs. With the growth of network speed, virtualization, and cloud-based applications like VoIP, video streaming, and IP surveillance, businesses in all sectors must keep up to ensure success. Also, the increase in speeds for access points now require faster speeds in the network.

The XS508TM and XS516TM are 10G/ Multi-Gigabit Ethernet Smart Switches with 2 10G SFP+ ports that joined the NETGEAR Total Network Solution family, adding the first fully 10G series to our Insight compatible switch line. NETGEAR Pro WiFi Access Points with power adapters are perfect for use wit...h the XS508TM and XS516TM switches.

NETGEAR Smart Switches offer powerful L2+/Lite L3 features and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion. Furthermore, for 2.5G or 5G speeds there is no requirement to upgrade your cabling beyond Cat5E, allowing for higher speeds without additional cabling upgrade costs.

These 10G/Multi-Gigabit Ethernet Smart Switches support NETGEAR Insight Cloud management, allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser

Specifications
Manufacturer: Netgear, Inc
Manufacturer Part Number: XS516TM100EUS
Manufacturer Website Address: http://www.netgear.co.uk
Brand Name: Netgear
Product Line: Smart
Product Series: S3600
Product Model: XS516TM
Product Name: Smart S3600 XS516TM Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 16 x Gigabit Ethernet Network
• 2 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• 10 Gigabit Ethernet
• Gigabit Ethernet

Network Technology:

• 10/100/1000Base-T
• 10GBase-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.1x
• IEEE 802.1p
• IEEE 802.3az
• IEEE 802.1Q
• IEEE 802.3ad
• IEEE 802.3x
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.1ab

Management & Protocols
Manageable: Yes
Reliability
MTBF: 506741.90 Hour
Power Description
Power Source: Power Supply
Power Consumption: 64.80 W
Physical Characteristics
Form Factor:

• Desktop
• Wall Mountable
• Rack-mountable
• Table Top

Height: 43 mm
Width: 330 mm
Depth: 206 mm
Weight (Approximate): 2.45 kg
Miscellaneous
Package Contents:

• Smart S3600 XS516TM Ethernet Switch
• Power Cord (Localized To Region Of Sale)
• Mounting Kit
• Rubber Footpads for Tabletop Installation
• Installation Guide

Application/Usage:

• Network
• Business
• Office
• Camera
• IP Surveillance Network
• Wireless Access Point
• Indoor

Warranty
Limited Warranty: Lifetime
