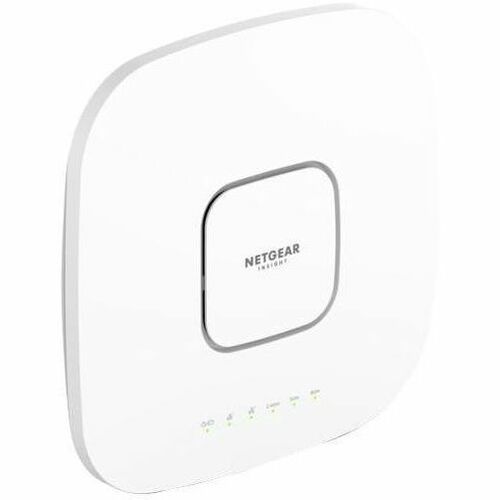

Netgear Insight Managed WiFi 6E AXE7800 Wireless Access Point

Marketing Information

Next Gen 6GHz Tri-Band WiFi 6E Access Point for the Commercial and Residential Integrators

The WAX638E expands the NETGEAR Insight Cloud managed access point products to offer a next generation triband access point that includes a new and ultra wide, ultra fast WiFi frequency band. The WAX638E is a 2.4GHz, 5GHz and 6GHz tri-band design delivering up-to 7.8Gbps total WiFi throughput, supported by a 2.5Gbps Power-overEthernet and a 1Gbps Ethernet ports, and industry leader of technology innovation and performance in its product class.

The WAX638E enables industry's next generation WiFi standard, WiFi 6 Release 2, or WiFi 6E, operating on 6GHz band, delivering unprecedented data throughput speed and available channels for W...iFi connectivity with smartphones, IoTs, and computers.

The new 6GHz band provides up to 3.5 times more channels for WiFi communication, enabling the WAX638E to deliver faster speed, handling more client devices in a significantly less congested environment.

WiFi 6 Release 1 operates only in 2.4GHz and 5GHz bands, with 80MHz channelization in the 5GHz band. By contrast, WiFi 6 Release 2, or WiFi 6E, operates in 2.4GHz, 5GHz, and 6GHz bands, with 160MHz channelization in the 5GHz and 6GHz bands. By enabling the 160MHz channels, the WAX630E delivers 100% more speed in the 5GHz band than WiFi 6 Release 1 access points.

The WAX638E is ideal in high density client device environments such as schools, hotels, restaurants and conference centers, and provides enterprise grade WiFi network security. With Insight management, WAX638E works seamlessly with your current NETGEAR Insight managed switches, WiFi access points and network storage, and is compatible with previous generation WiFi devices (WiFi 5 802.11ac for example) and WiFi access points. Enjoy a 4-year Insight subscription plus 4 years of ProSUPPORT, a 24/7 live expert technical support by phone, chat and email.

With the updated WiFi 6 (802.11ax) and WiFi 6E (802.11ax) technology such as OFDMA, upstream and downstream MU-MIMO, and increased speeds, coverage, and capacity, you can feel confident that you're getting the highest performance WiFi that's set for years to come! Plus the assurance that you can now add more connected devices on your WiFi network without any slowdowns or blind spots.

The WAX638E, a WiFi 6E access point, combined with Insight, helps integrators with a way to remotely manage their client's network, providing seamless WiFi connection and satisfied client experiences. NETGEAR empowers integrators with an all new WiFi 6E access point for high performance and high coverage for the years to come.

The WAX638E is compatible with other Pro WiFi Insight managed access points to form a scalable wireless network.

Supercharged performance and unbeatable security for WiFi integration projects

• Business class WiFi based on next generation 802.11ax WiFi 6 technology on 6.0GHz, 5.0GHz and 2.4GHz bands. (Backward compatible to 802.11b/g/n/a/ac)
• Support 160MHz channelization in both 5GHz and 6GHz to deliver 200% throughput compared to previous generation
• Tri-band, 2.4GHz, 5.0GHz, 6.0GHz, 8 streams of data for an aggregate throughput of up to 7.8Gbps
• Instant WiFi Mesh forming wireless backhaul with other Pro WiFi Insight managed access points to form a WiFi mesh network

Specifications
Manufacturer: Netgear, Inc
Manufacturer Part Number: WAX638E111EUS
Manufacturer Website Address: http://www.netgear.co.uk
Brand Name: Netgear
Product Model: WAX638E
Product Name: Insight Managed WiFi 6E AXE7800 Wireless Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: 802.11ax
Network Band: Tri Band
Frequency Band:

• 2.40 GHz
• 5 GHz
• 6 GHz

Wireless Transmission Speed: 7.80 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:

• WPA
• WPA2
• WPA3
• WPA3-ENT
• WPA2-ENT

Interfaces/Ports
Ethernet Technology:

• Gigabit Ethernet
• 2.5 Gigabit Ethernet

Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes
Physical Characteristics
Form Factor:

• Wall Mountable
• Ceiling Mountable

Antenna Form Factor: Internal
Height: 55.5 mm
Width: 266.6 mm
Depth: 268.3 mm
Weight (Approximate): 1.05 kg
Miscellaneous
Package Contents:

• Insight Managed WiFi 6E AXE7800 Wireless Access Point
• Wall/ceiling Mount Kit
• Installation Guide
