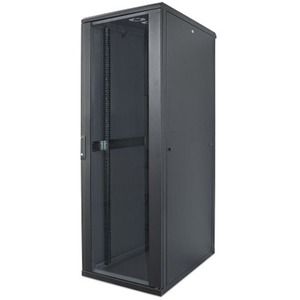

Intellinet 19" Network Cabinet

Marketing Information

The Intellinet Network Solutions network cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version.

In terms of housing, you have numerous 19″ options with installation depths that range from 600 to 800 mm: With heights from 16 to 42 units in black (RAL9005) or gray (RAL7035), we offer you a solution for every need. The removable side panels and the lockable tempered-glass door make cabling and component exchange particularly easy.

In material and workmanship, we provide top quality. Part of that is a cold-rolled steel frame..., zinc-plated 19″ mounting rails and antistatic powder coating on all panels.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 713085
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Model: 713085
Product Name: 19" Network Cabinet
Product Type: Rack Cabinet
Technical Information
Application/Usage:

• LAN Switch
• Patch Panel

Features:

• Removable Side Panel
• Lockable Door
• Reversible Front Door
• Removable Back Panel
• Vented

Physical Characteristics
Product Color: Black
Product Material:

• Cold-rolled Steel (CRS)
• Tempered Glass
• Zinc Plated

Static/Stationary Weight Capacity: 1500 kg
Height: 1144 mm
Width: 600 mm
Depth: 800 mm
Length: 800 mm
Weight (Approximate): 81 kg
Rack Height: 22U
Rack Width: 482.60 mm
Miscellaneous
Package Contents:

• 19" Network Cabinet
• 4 x Depth-Adjustable Mounting Rails
• 4 x Adjustable Supporting Feet
• Installation Hardware

Assembly Required: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
