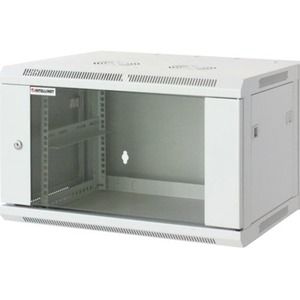

Intellinet 19" Wallmount Cabinet

Marketing Information

The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL9005) or (RAL7021) & gray (RAL7035).
We offer you a solution for every need.

Various options include:
Removable side panels (some lockable).
Tempered/Toughened glass doors.
Double Section, making cablin...g and component exchange simple.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 711920
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Name: 19" Wallmount Cabinet
Product Type: Rack Cabinet
Technical Information
Application/Usage:

• LAN Switch
• Patch Panel

Physical Characteristics
Form Factor: Wall Mountable
Color Family: Grey
Product Color: Light Grey
Product Material:

• Cold Rolled Steel
• Tempered Glass
• SPCC
• Toughened Glass

Static/Stationary Weight Capacity: 60 kg
Height: 635 mm
Width: 600 mm
Depth: 450 mm
Weight (Approximate): 22 kg
Rack Height: 12U
Rack Width: 482.60 mm
Rack Depth: 350 mm
Miscellaneous
Package Contents:

• 19" Wallmount Cabinet
• 4 x Mounting Rails
• Installation Hardware Including Tool
• 20 x M6 Sets
• 6 x Keys

Assembly Required: No
Warranty
Limited Warranty: 3 Year
