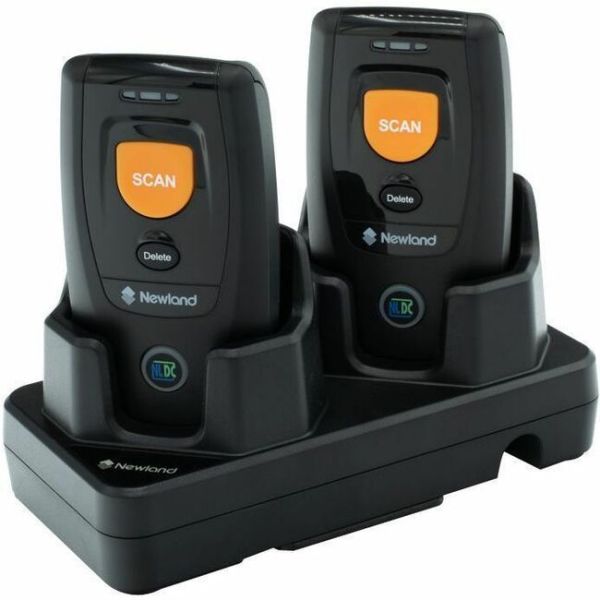

Newland BS80 Piranha II 1D Barcode Scanner

Marketing Information

The BS80 Piranha II is a snappy, small, and portable barcode scanner, providing the convenience of always having a scanner at your fingertips. Dimensions of 88 x 46 x 24.5 mm make it small enough to fit into your pocket and light enough to carry around all day. Despite its small size, the Piranha II maintains an excellent performance, seamlessly scanning major 1D barcodes.

Providing the convenience of always having a scanner at your fingertips.

Bluetooth wireless can be used to pair the Piranha II with a mobile computer, consumer phone, tablet or micro kiosk. This adaptability and portability makes it the perfect solution for industries like retail, warehousing and online to offline (O2O) applications like electronic tic...keting and electronic ordering.

Specifications
Manufacturer: Newland
Manufacturer Part Number: NLSBS80801D
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Model: BS80 Piranha II 1D
Product Name: BS80 Piranha II 1D Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability: 1D
Barcode Symbology Supported:

1D:

• All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, ISSN, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc.

Light Source: LED
Image Sensor Type: Imager
Depth of Field:

• EAN 13 (13mil): 55-550mm
• Code 39 (5mil): 70-185mm
• Code 128 (10mil): 60-500mm

Scan Pattern: Linear
Features:

• Notification LED
• Scan Button
• Vibration

Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Drop Specification:

1.2M drop

Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 0.13 mm
Illumination Type: LED
Memory
Flash Memory: 1 MB
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Power Description
Input Current: 185 mA
Standby Current: 25 mA
Battery Information
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 900 mAh
Maximum Battery Run Time: 6.50 Hour
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Height: 24.5 mm
Width: 46 mm
Length: 88 mm
Weight (Approximate): 67 g
Miscellaneous
Ingress Protection (IP) Rating: IP42
Application/Usage:

• Healthcare
• Hospitality
• Retail
• Industrial
• Warehouse
• Ticketing

Platform Supported:

• PC
• Mac
• Android

Software Supported:

Configuration Tools: EasySet

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
