Newland FM3080 Hind
1074900021
£139.37
Newland FM3080 Hind
Newland FM3080 Hind is available to buy in increments of 1
Environment, key point: Not yet rated
Human, key point: Not yet rated
Animal, key point: Not yet rated
Social, key point: Not yet rated
Durability, key point: Not yet rated
Categories: Barcode Scanners, Default Category
| Application/Usage | Hospitality/Retail/Transportation/Kiosk/Logistics |
|---|---|
| Host Interface | Serial/USB |
| Product Type | Barcode Scanner |
| Limited Warranty | 2 Year |
| Connectivity Technology | Cable |
| Form Factor | Fixed Mount |
| Brand Name | Newland |
| Scanning Distance | 210 mm |
| Infrared | Yes |
| Image Sensor Type | CMOS |
| Product Family | FM3080 Hind |
| Ingress Protection (IP) Rating | IP65 |
| Cable Type Included | Serial |
| Scanning Capability | 1D/2D |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: Newland
Manufacturer Part Number: NLS-FM3080V2-28
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: FM3080 Hind
Product... Name: FM3080 Hind
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:
Barcode Symbology Supported:
Image Sensor Type: CMOS
Depth of Field:
Scanning Distance: 210 mm
Cable Type Included: Serial
Field of View (Horizontal): 74°
Field of View (Vertical): 74°
Reading Angle (Skew): 40°
Reading Angle (Pitch): 40°
Reading Angle (Roll): 360°
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 0.51 mm
Illumination Type: LED
Illumination Color: White
Network & Communication
Infrared: Yes
Interfaces/Ports
Host Interface:
Power Description
Maximum Operating Power Consumption: 869 mW
Input Current: 193 mA
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Fixed Mount
Height: 47.5 mm
Width: 78.7 mm
Depth: 67.7 mm
Weight (Approximate): 132 g
Miscellaneous
Package Contents:
Ingress Protection (IP) Rating: IP65
Application/Usage:
Software Supported: EasySet Configuration Tool
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year

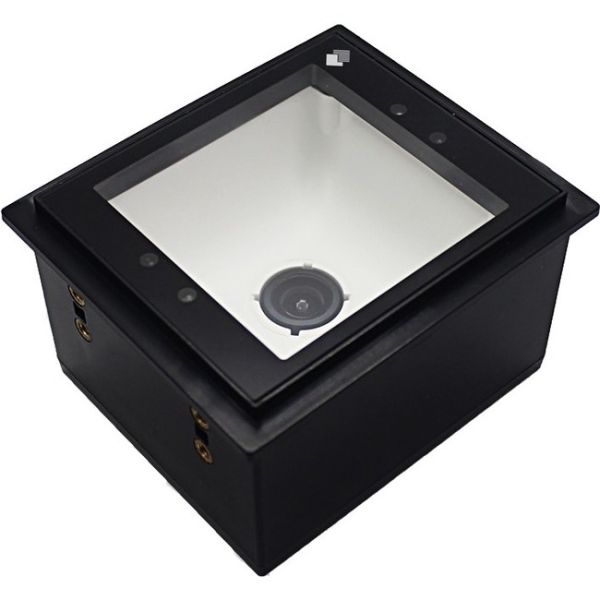

Prepared for integration in your kiosk or counter, the FM3080 Hind combines performance and customization. The large scan window is optimized to read barcodes from a mobile phone, even codes with large amounts of data.
Impressive scanning capabilities combined with customization.
With 4 color options available, the FM3080 Hind can be easily programmed to indicate a successful read or to match your brand.
Specifications
Manufacturer: Newland
Manufacturer Part Number: NLS-FM3080V2-28
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: FM3080 Hind
Product... Name: FM3080 Hind
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:
- 1D
- 2D
Barcode Symbology Supported:
1D:
- EAN-13
- EAN-8
- UPC-A
- UPC-E
- ISSN
- ISBN
- Codabar
- Code 128 (FNC1, FNC2, FNC3)
- Code 93
- ITF-6
- ITF-14
- Interleaved 2 of 5
- Industrial 2 of 5
- Standard 2 of 5
- Matrix 2 of 5
- GS1 Databar (RSS-Expand, RSS-Limited, RSS-14)
- Code 39
- Code 11
- MSI-Plessey
- Plessey
2D:
- PDF417
- Data matrix
- Qr code
- Micro QR Code
- Aztec
Image Sensor Type: CMOS
Depth of Field:
- EAN 13 (13mil) 0-190mm
- Code 39 (20mil) 40-210mm
- Code 128 (10mil) 0-185mm
- QR (20mil) 0-130mm
Scanning Distance: 210 mm
Cable Type Included: Serial
Field of View (Horizontal): 74°
Field of View (Vertical): 74°
Reading Angle (Skew): 40°
Reading Angle (Pitch): 40°
Reading Angle (Roll): 360°
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 0.51 mm
Illumination Type: LED
Illumination Color: White
Network & Communication
Infrared: Yes
Interfaces/Ports
Host Interface:
- Serial
- USB
Power Description
Maximum Operating Power Consumption: 869 mW
Input Current: 193 mA
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Fixed Mount
Height: 47.5 mm
Width: 78.7 mm
Depth: 67.7 mm
Weight (Approximate): 132 g
Miscellaneous
Package Contents:
- FM3080 Hind
- Data formatting
- RS232 cable
- Multiplug adapter
Ingress Protection (IP) Rating: IP65
Application/Usage:
- Hospitality
- Retail
- Transportation
- Kiosk
- Logistics
Software Supported: EasySet Configuration Tool
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
