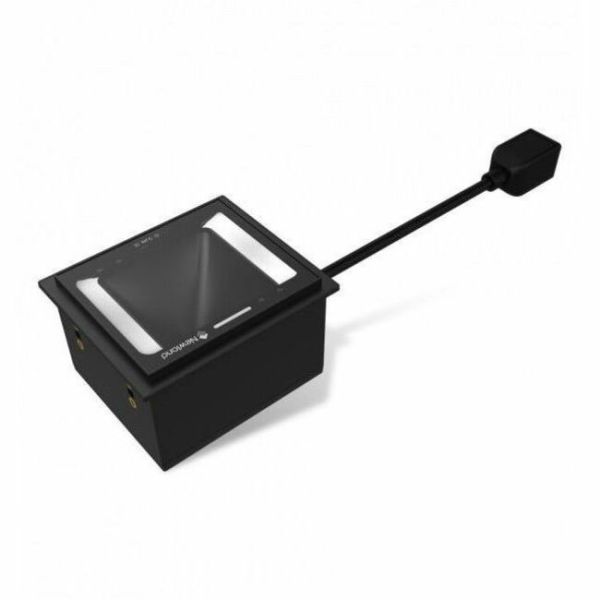

Newland FM3281 Grouper Barcode Scanner
£194.56
Limited Stock: Only 0 available
Only 3 left
Newland FM3281 Grouper Barcode Scanner
Newland FM3281 Grouper Barcode Scanner is available to buy in increments of 1
Categories: Barcode Scanners, Default Category
| Application/Usage | Retail/Logistics/Hospitality/Healthcare/Outdoor/Entertainment |
|---|---|
| Host Interface | Serial |
| Product Type | Barcode Scanner |
| Limited Warranty | 2 Year |
| Connectivity Technology | Cable |
| Form Factor | Fixed Mount |
| Brand Name | Newland |
| Scanning Distance | 310 mm |
| Image Sensor Type | CMOS |
| Product Family | FM3281 Grouper |
| Ingress Protection (IP) Rating | IP67 |
| Cable Type Included | Serial |
| Scanning Capability | 1D/2D |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
| Ethics - Alert | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: Newland
...Manufacturer Part Number: NLSFM3281NFC28
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: FM3281 Grouper
Product Name: FM3281 Grouper Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:
Barcode Symbology Supported:
Image Sensor Type: CMOS
Depth of Field:
Scanning Distance: 310 mm
Features:
Cable Type Included: Serial
Field of View (Horizontal): 58°
Field of View (Vertical): 66°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 0.51 mm
Image Sensor Resolution: 1280 x 1088
Illumination Type: LED
Illumination Color: White
Interfaces/Ports
Host Interface: Serial
Power Description
Standby Current: 175 mA
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 85°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Fixed Mount
Height: 67.7 mm
Width: 78.7 mm
Depth: 47.7 mm
Miscellaneous
Package Contents:FM3281 Grouper Barcode Scanner 2 Meter RS232 Extension Cable Multiplug Power dapter
Ingress Protection (IP) Rating: IP67
Application/Usage:
Software Supported:
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
With its advanced NFC functionality, the FM3281 Grouper makes data transfers faster, easier, and more secure. Featuring a glare-reduction design and IP67 protection, the FM3281 Grouper performs well in various conditions, making it a perfect scanner for outdoor environments.
First of its kind with full NFC and outdoor-ready design
Combine barcode and OCR scanning with full-functioning NFC. With a variety of NFC cards supported, the FM3281 Grouper opens new possibilities in access control applications, adding a high level of security and protection to sensitive data and supporting advanced encryption and authentication features.
Specifications
Manufacturer: Newland
...Manufacturer Part Number: NLSFM3281NFC28
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: FM3281 Grouper
Product Name: FM3281 Grouper Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:
- 1D
- 2D
Barcode Symbology Supported:
1D:
- All major 1D symbologies
2D:
- All major 2D symbologies
Image Sensor Type: CMOS
Depth of Field:
- Depth of Field EAN 13 (13mil): 0-290mm
- Depth of Field Code 39 (20mil): 15-310mm
- Depth of Field Code 128 (10mil): 0-280mm
- Depth of Field QR (20mil): 0-270mm
Scanning Distance: 310 mm
Features:
- NFC Reader
- Beep
- Notification LED
Cable Type Included: Serial
Field of View (Horizontal): 58°
Field of View (Vertical): 66°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 0.51 mm
Image Sensor Resolution: 1280 x 1088
Illumination Type: LED
Illumination Color: White
Interfaces/Ports
Host Interface: Serial
Power Description
Standby Current: 175 mA
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 85°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Fixed Mount
Height: 67.7 mm
Width: 78.7 mm
Depth: 47.7 mm
Miscellaneous
Package Contents:
Ingress Protection (IP) Rating: IP67
Application/Usage:
- Retail
- Logistics
- Hospitality
- Healthcare
- Outdoor
- Entertainment
Software Supported:
Configuration Tools: EasySet
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
