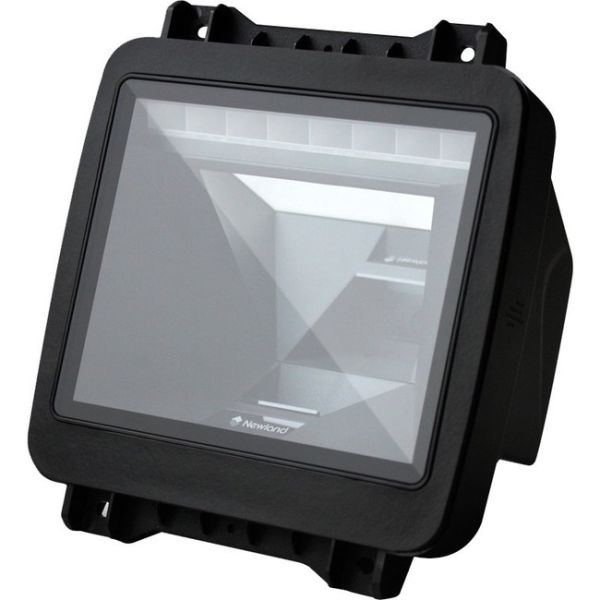

Newland FM80 Salmon
Application/Usage | Retail/Pharmacy |
---|---|
Host Interface | Serial/USB |
Product Type | Barcode Scanner |
Limited Warranty | 2 Year |
Connectivity Technology | Cable |
Form Factor | Fixed Mount |
Brand Name | Newland |
Scanning Distance | 140 mm |
Image Sensor Type | CMOS |
Ingress Protection (IP) Rating | IP52 |
Cable Type Included | USB |
Scanning Capability | 1D/2D |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Ethics - Environment | Rating Coming Soon |
Ethics - Animal | Rating Coming Soon |
Ethics - Human | Rating Coming Soon |
Ethics - Integrity | Rating Coming Soon |
Ethics - Durability | Rating Coming Soon |
Description
As shopper expectations are evolving, retailers turn to technology for strong solutions that keep up pace. The FM80 Salmon offers an easily integrated barcode scanner to build into such self-service kiosks or complete POS units. It's large scan window and fool-proof features offer a great solution for self-service kiosks for inexperienced customers.
Superior retail scanning at your convenience.
The FM80 Salmon's sky-high motion tolerance of 3,5 m/s for retail codes makes for fast and efficient scanning that helps avoid congestion at checkout. All backed up by our top megapixel scan technology.
Specifications
Manufacturer: Newland
Manufacturer Part Number<.../span>: NLS-FM8080-20
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Model: FM80
Product Name: FM80 Salmon
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:
- 1D
- 2D
Barcode Symbology Supported: 1D:
- EAN-13
- EAN-8
- UPC-A
- UPC-E
- Code 128
- Code 39
- Codabar
- UCC/EAN 128
- RSS
- Interleaved 25
- ITF 14
- ITF 6
- Standard 25
- Matrix 25
- COOP 25
- Industrial 25
- Plessey
- MSI Plessey
- Code 11
- Code 93
- Code 49
- Code 16K
- PDF417
- QR Code
- Data Matrix
- Micro PDF417
- Micro QR
Image Sensor Type: CMOS
Scan Mode: Sense
Depth of Field:
EAN 13 (13mil) 0mm-140mm
Scanning Distance: 140 mm
Cable Type Included: USB
Field of View (Horizontal): 42°
Field of View (Vertical): 36°
Reading Angle (Skew): 50°
Reading Angle (Pitch): 55°
Reading Angle (Roll): 360°
Motion Tolerance: 3500 mm/s
Minimum Print Contrast: 15%
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: Red
Interfaces/Ports
Host Interface:
- Serial
- USB
Power Description
Maximum Operating Power Consumption: 2.50 W
Input Current: 500 mA
Standby Current: 100 mA
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Fixed Mount
Height: 166.5 mm
Width: 149 mm
Depth: 78.5 mm
Weight (Approximate): 448.3 g
Miscellaneous
Package Contents:
- FM80 Salmon
- 3meter USB cable
Ingress Protection (IP) Rating: IP52
Application/Usage:
- Retail
- Pharmacy
Software Supported:
EasySet Configuration Tool
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 2 Year
