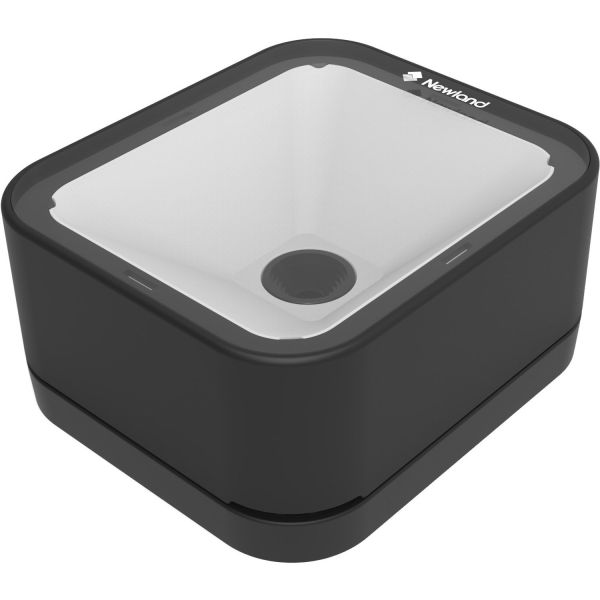

Newland FR27 Urchin
1074900025
£99.84
Newland FR27 Urchin
Environment, key point: Not yet rated
Human, key point: Not yet rated
Animal, key point: Not yet rated
Social, key point: Not yet rated
Durability, key point: Not yet rated
Categories: Barcode Scanners, Default Category
| Application/Usage | Kiosk/Transportation/Hospitality/Retail/Logistics |
|---|---|
| Host Interface | USB |
| Product Type | Barcode Scanner |
| Limited Warranty | 5 Year |
| Connectivity Technology | Cable |
| Form Factor | Desktop |
| Brand Name | Newland |
| Scanning Distance | 105 mm |
| Image Sensor Type | CMOS |
| Product Family | FR27 Urchin |
| Product Color | Black |
| Color Family | Black |
| Ingress Protection (IP) Rating | IP42 |
| Cable Type Included | USB |
| Scanning Capability | 1D/2D |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: Newland
Manufacturer Part Number...an>: NLS-FR2780-B-20
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: FR27 Urchin
Product Name: FR27 Urchin
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:
Barcode Symbology Supported: 1D:
Image Sensor Type: CMOS
Scan Mode: Sense
Depth of Field:
Scanning Distance: 105 mm
Cable Type Included: USB
Field of View (Horizontal): 68°
Field of View (Vertical): 51°
Reading Angle (Skew): 75°
Reading Angle (Pitch): 75°
Reading Angle (Roll): 360°
Motion Tolerance: 2700 mm/s
Maximum Ambient Light: 100000 lux
Drop Specification: 1.5m Drop
Minimum Print Contrast: 20%
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 640 x 480
Illumination Type: LED
Illumination Color: White
Interfaces/Ports
Host Interface: USB
Power Description
Maximum Operating Power Consumption: 698 mW
Input Current: 140 mA
Standby Current: 100 mA
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Desktop
Color Family: Black
Product Color: Black
Height: 38 mm
Width: 66.3 mm
Depth: 76.3 mm
Weight (Approximate): 120 g
Miscellaneous
Package Contents:
Ingress Protection (IP) Rating: IP42
Application/Usage:
Software Supported: EasySet Configuration Tool
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
The FR27 Urchin, Newlands smallest presentation scanner, strikes the perfect balance between performance and play. Its large scan window and outstanding motion tolerance makes self-service scanning a breeze. All whilst maintaining a small & sleek footprint, fit to enhance your countertop design.
Newland continues to define the customer journey in self-scanning.
With the possibility to be mounted horizontally, vertically and to manipulate the cable, the FR27 Urchin can be installed to blend into its environment. This plug-and-go USB scanner just made your self-service scanning childsplay.
Specifications
Manufacturer: Newland
Manufacturer Part Number...an>: NLS-FR2780-B-20
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: FR27 Urchin
Product Name: FR27 Urchin
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:
- 1D
- 2D
Barcode Symbology Supported: 1D:
- All major 1D symbologies
- QR Code
- Data Matrix
- Aztec
- Micro PDF
- Micro QR
- PDF417
Image Sensor Type: CMOS
Scan Mode: Sense
Depth of Field:
- EAN 13 (13mil) 20mm-105mm
- PDF417 (6.67mil) 30mm-40mm
- Data Matrix (10mil) 30mm-45mm
- QR (15mil) 0mm-85mm
Scanning Distance: 105 mm
Cable Type Included: USB
Field of View (Horizontal): 68°
Field of View (Vertical): 51°
Reading Angle (Skew): 75°
Reading Angle (Pitch): 75°
Reading Angle (Roll): 360°
Motion Tolerance: 2700 mm/s
Maximum Ambient Light: 100000 lux
Drop Specification: 1.5m Drop
Minimum Print Contrast: 20%
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 640 x 480
Illumination Type: LED
Illumination Color: White
Interfaces/Ports
Host Interface: USB
Power Description
Maximum Operating Power Consumption: 698 mW
Input Current: 140 mA
Standby Current: 100 mA
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Desktop
Color Family: Black
Product Color: Black
Height: 38 mm
Width: 66.3 mm
Depth: 76.3 mm
Weight (Approximate): 120 g
Miscellaneous
Package Contents:
- FR27 Urchin
- 1.5 meter direct USB cable
Ingress Protection (IP) Rating: IP42
Application/Usage:
- Kiosk
- Transportation
- Hospitality
- Retail
- Logistics
Software Supported: EasySet Configuration Tool
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
