Newland HR23 Dorada Bluetooth
£104.55
Limited Stock: Only 0 available

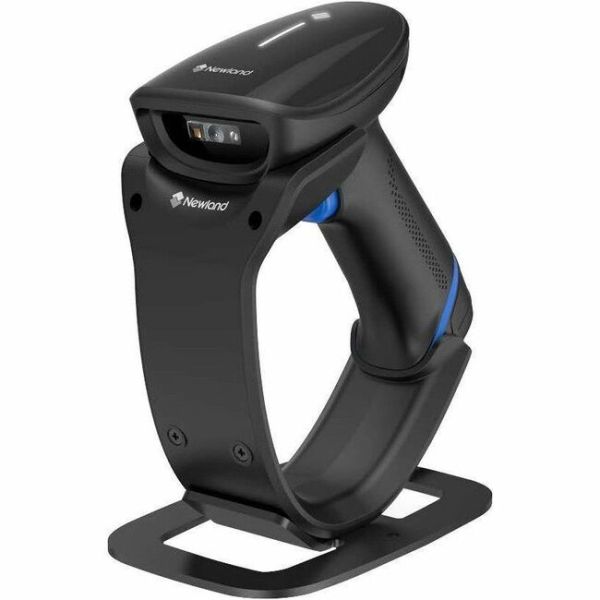

Newland HR23 Dorada Bluetooth
Newland HR23 Dorada Bluetooth is available to buy in increments of 1
Categories: Barcode Scanners, Default Category
| Application/Usage | Retail/Hospitality/Healthcare |
|---|---|
| Host Interface | USB |
| Product Type | Barcode Scanner Kit |
| Limited Warranty | 3 Year |
| Connectivity Technology | Wireless |
| Form Factor | Handheld |
| Brand Name | Newland |
| Scanning Distance | 280 mm |
| Light Source | LED |
| Bluetooth | Yes |
| Image Sensor Type | CMOS |
| Product Family | Dorada |
| Ingress Protection (IP) Rating | IP52 |
| Rugged | Yes |
| Cable Type Included | USB |
| Scanning Capability | 1D/2D |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: Newland
Manufacturer Part Number: NLS-HR2300-BT
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: Dorada
Product Model: HR23
Product Name...n>: HR23 Dorada Bluetooth
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:
Barcode Symbology Supported:
Light Source: LED
Image Sensor Type: CMOS
Depth of Field:
Scanning Distance: 280 mm
Features:
Cable Type Included: USB
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Drop Specification:
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 640 x 480
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Battery Information
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 2600 mAh
Maximum Battery Run Time: 17 Hour
Maximum Battery Recharge Time: 6 Hour
Environmental Conditions
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Weight (Approximate): 209 g
Miscellaneous
Package Contents:HR23 Dorada Bluetooth 2 mtr. Straight USB Cable Communication/Charging Cradle Battery
Ingress Protection (IP) Rating: IP52
Application/Usage:
Software Supported:
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2
Warranty
Limited Warranty: 3 Year
The HR23 Dorada Bluetooth offers the best cordless 2D scanning at the price of a 1D scanner, thanks to Newland's advanced decoding technology. With its blended ergonomics and creative design, the HR23 Dorada offers comfort and productivity for quickly capturing barcodes. The HR23 Dorada Bluetooth is ideal for intensive handheld scanning, from high-density to damaged, vague, and distorted barcodes.
Specifications
Manufacturer: Newland
Manufacturer Part Number: NLS-HR2300-BT
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: Dorada
Product Model: HR23
Product Name...n>: HR23 Dorada Bluetooth
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:
- 1D
- 2D
Barcode Symbology Supported:
1D:
- Code 11
- Code 128
- Code 39
- GS1-128(UCC/ENA-128)
- AIM 128
- ISBT 128
- Codabar
- Code 93
- UPC-A
- UPC-E,
- Coupon
- GS1 Composite
- EAN-13
- EAN-8
- ISSN,
- ISBN,
- Interleaved 2 of 5
- Matrix 2 of 5
- Industrial 2 of 5
- ITF-6
- ITF-14
- Standard 2 of 5
- China Post 25
- MSI-Plessey
- Plessey
- GS1Databar(RSS)
2D:
- PDF417
- QR Code
- Aztec
- Data Matrix
- Micro PDF417
- Micro QR
- Chinese Sensible Code
Light Source: LED
Image Sensor Type: CMOS
Depth of Field:
- Depth of Field EAN 13 (13mil) - 50mm-280mm
- Depth of Field Code 39 (5mil) - 50mm-120mm
- Depth of Field PDF417 (6.7mil) - 40mm-120mm
- Depth of Field DataMatrix (10mil) - 30mm-125mm
Scanning Distance: 280 mm
Features:
- Vibration
- Beep
- Notification LED
Cable Type Included: USB
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Drop Specification:
Scanner: 1.5m drops to concrete (cradle: 1,2m)
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 640 x 480
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Battery Information
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 2600 mAh
Maximum Battery Run Time: 17 Hour
Maximum Battery Recharge Time: 6 Hour
Environmental Conditions
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Weight (Approximate): 209 g
Miscellaneous
Package Contents:
Ingress Protection (IP) Rating: IP52
Application/Usage:
- Retail
- Hospitality
- Healthcare
Software Supported:
EasySet
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2
Warranty
Limited Warranty: 3 Year
