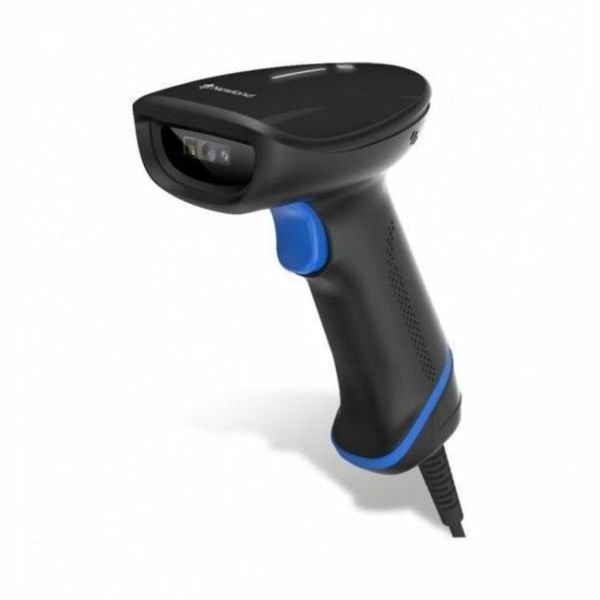

Newland HR23 Dorada Corded

1081276487

£71.69

Newland HR23 Dorada Corded is available to buy in increments of 1

Environment, key point: Not yet rated

Human, key point: Not yet rated

Animal, key point: Not yet rated

Social, key point: Not yet rated

Durability, key point: Not yet rated

Categories: Barcode Scanners, Default Category

More Information

Application/Usage	Retail/Hospitality/Healthcare
Host Interface	USB/Serial
Product Type	Barcode Scanner Kit
Limited Warranty	5 Year
Connectivity Technology	Cable
Form Factor	Handheld
Brand Name	Newland
Scanning Distance	280 mm
Light Source	LED
Image Sensor Type	CMOS
Product Family	Dorada
Stand Included	Yes
Ingress Protection (IP) Rating	IP52
Cable Type Included	USB
Scanning Capability	1D/2D
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Ethics - Environment	Rating Coming Soon
Ethics - Animal	Rating Coming Soon
Ethics - Human	Rating Coming Soon
Ethics - Integrity	Rating Coming Soon
Ethics - Durability	Rating Coming Soon

Description

Marketing Information

The HR23 Dorada offers the best 2D scanning at the price of a 1D scanner, thanks to Newland's advanced decoding technology. With its blended ergonomics and creative design, the HR23 Dorada offers comfort and productivity for quickly capturing barcodes. The HR23 Dorada is ideal for intensive handheld scanning, from high-density to damaged, vague, and distorted barcodes.

Specifications
Manufacturer: Newland
Manufacturer Part Number: NLS-HR2300-SA
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: Dorada
Product Model: HR23
Product Name: HR23 Dorada Corded
...pan>Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

Barcode Symbology Supported:

1D:

Code 11
Code 128
Code 39
GS1-128(UCC/ENA-128)
AIM 128
ISBT 128
Codabar
Code 93
UPC-A
UPC-E
Coupon
GS1 Composite
EAN-13
EAN-8
ISSN
ISBN
Interleaved 2 of 5
Matrix 2 of 5
Industrial 2 of 5
ITF-6
ITF-14
Standard 2 of 5
China Post 25
MSI-Plessey
Plessey
GS1Databar(RSS)

2D:

PDF417
QR Code
Aztec
Data Matrix
Micro PDF417
Micro QR

Light Source: LED
Image Sensor Type: CMOS
Depth of Field:

Depth of Field EAN 13 (13mil) 50mm-280mm
Depth of Field Code 39 (5mil) 50mm-120mm
Depth of Field PDF417 (6.7mil) 40mm-120mm
Depth of Field DataMatrix (10mil) 30mm-125mm

Scanning Distance: 280 mm
Features:

Beep
Notification LED
Vibration

Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Drop Specification:

1.5m drops to concrete

Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 640 x 480
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Interfaces/Ports
Host Interface:

USB
Serial

Power Description
Input Current: 200 mA
Standby Current: 35 mA
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Weight (Approximate): 137 g
Miscellaneous
Package Contents:

HR23 Dorada Corded

3.5 mtr. Coiled USB Cable CBL030UA

Smart Adjustable Stand nls-std23-33-sa

Ingress Protection (IP) Rating: IP52
Application/Usage:
