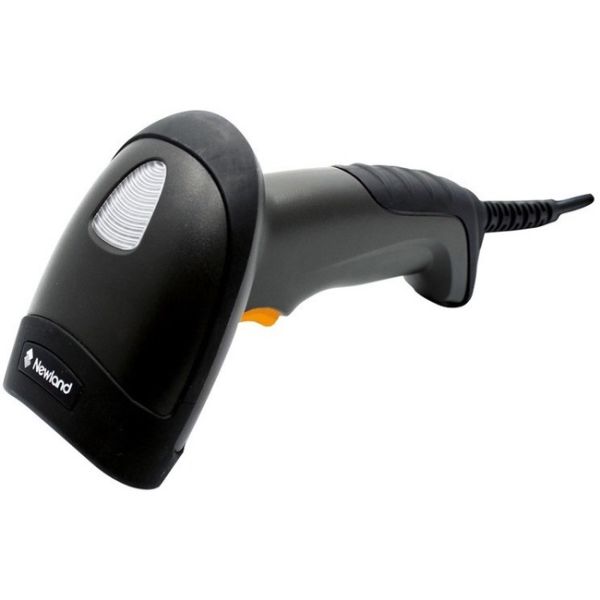

Newland HR32 Marlin Corded
1073526671
£80.33
Newland HR32 Marlin Corded
Newland HR32 Marlin Corded is available to buy in increments of 1
Environment, key point: Not yet rated
Human, key point: Not yet rated
Animal, key point: Not yet rated
Social, key point: Not yet rated
Durability, key point: Not yet rated
Categories: Barcode Scanners, Default Category
| Application/Usage | Healthcare/Retail/Warehouse/Logistics |
|---|---|
| Host Interface | USB/Serial |
| Product Type | Barcode Scanner |
| Limited Warranty | 5 Year |
| Connectivity Technology | Cable |
| Form Factor | Handheld |
| Brand Name | Newland |
| Scanning Distance | 510 mm |
| Light Source | LED |
| Image Sensor Type | CMOS |
| Product Family | HR32 |
| Stand Included | Yes |
| Product Color | Black |
| Ingress Protection (IP) Rating | IP42 |
| Cable Type Included | USB |
| Scanning Capability | 1D/2D |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: Newland
Manufacturer Part Number: NLS-HR3280-SF
Manufactur...er Website Address: http://www.newland-id.com
Brand Name: Newland
Product Series: HR32
Product Name: HR32 Marlin Corded
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:
Barcode Symbology Supported: 1D:
Light Source: LED
Image Sensor Type: CMOS
Scan Mode: Trigger
Depth of Field:
Scanning Distance: 510 mm
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 39°
Field of View (Vertical): 24°
Reading Angle (Skew): 55°
Reading Angle (Pitch): 55°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification:
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: Red
Processor & Chipset
Processor Model: X1500
Processor Speed: 1 GHz
Interfaces/Ports
Host Interface:
Power Description
Maximum Operating Power Consumption: 1.29 W
Input Current: 260.50 mA
Standby Current: 71.30 mA
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Product Color: Black
Product Material: Polycarbonate (PC)
Height: 159 mm
Width: 113.5 mm
Depth: 73.3 mm
Weight (Approximate): 162 g
Miscellaneous
Package Contents:
Ingress Protection (IP) Rating: IP42
Application/Usage:
Software Supported:
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
The HR32 Marlin Corded is a barcode scanning powerhouse. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small and high resolution codes, with impressive speed and ease.
The ideal handheld solution for scan-intensive use in retail and logistics.
The HR32 Marlin Corded is a barcode scanning powerhouse. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small and high density ones, with impressive speed and ease.
Specifications
Manufacturer: Newland
Manufacturer Part Number: NLS-HR3280-SF
Manufactur...er Website Address: http://www.newland-id.com
Brand Name: Newland
Product Series: HR32
Product Name: HR32 Marlin Corded
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:
- 1D
- 2D
Barcode Symbology Supported: 1D:
- EAN-13
- EAN-8
- UPC-A
- UPC-E
- ISSN
- ISBN
- Codabar
- Code 128
- Code93
- ITF-6
- ITF-14
- Interleaved 2 of 5
- Industrial 2 of 5
- Standard 2 of 5
- Matrix 2 of 5
- GS1 Databar
- Code 39
- Code 11
- MSI-Plessey
- Plessey
- PDF417
- QR Code
- Data Matrix
- Aztec
- Maxicode
Light Source: LED
Image Sensor Type: CMOS
Scan Mode: Trigger
Depth of Field:
- EAN 13 (13mil) 45-510mm
- Code 39 (5mil) 75-220mm
- PDF417 (6.67mil) 70-215mm
- Data Matrix (10mil) 50-220mm
- QR (15mil) 20-330mm
Scanning Distance: 510 mm
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 39°
Field of View (Vertical): 24°
Reading Angle (Skew): 55°
Reading Angle (Pitch): 55°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification:
1.5m Drop
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: Red
Processor & Chipset
Processor Model: X1500
Processor Speed: 1 GHz
Interfaces/Ports
Host Interface:
- USB
- Serial
Power Description
Maximum Operating Power Consumption: 1.29 W
Input Current: 260.50 mA
Standby Current: 71.30 mA
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Product Color: Black
Product Material: Polycarbonate (PC)
Height: 159 mm
Width: 113.5 mm
Depth: 73.3 mm
Weight (Approximate): 162 g
Miscellaneous
Package Contents:
- HR32 Marlin Corded
- 3.5 meter coiled USB cableAutosense
- Foldable smart stand
Ingress Protection (IP) Rating: IP42
Application/Usage:
- Healthcare
- Retail
- Warehouse
- Logistics
Software Supported:
EasySet Configuration Tools
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
