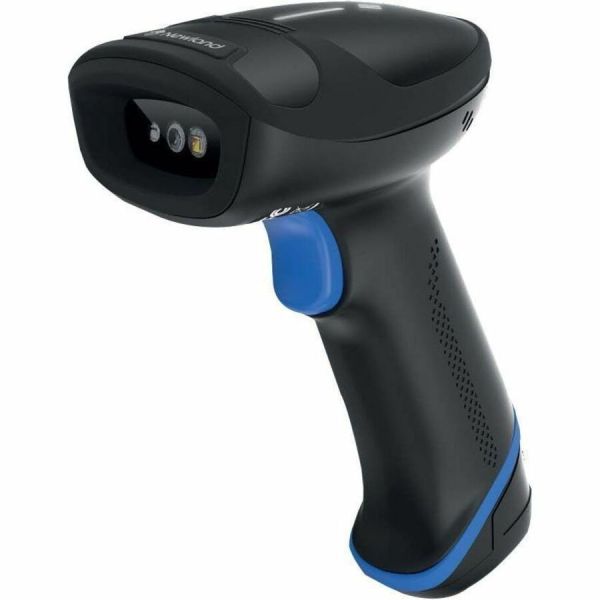

Newland HR33 Marlin Bluetooth
£178.89
Limited Stock: Only 0 available
Newland HR33 Marlin Bluetooth
Newland HR33 Marlin Bluetooth is available to buy in increments of 1
Categories: Barcode Scanners, Default Category
| Application/Usage | Retail/Warehouse/Healthcare |
|---|---|
| Host Interface | USB/Keyboard Wedge |
| Product Type | Barcode Scanner |
| Limited Warranty | 5 Year |
| Connectivity Technology | Wireless |
| Form Factor | Handheld |
| Brand Name | Newland |
| Scanning Distance | 535 mm |
| Light Source | Laser |
| Bluetooth | Yes |
| Image Sensor Type | CMOS |
| Product Family | Marlin |
| Stand Included | Yes |
| Ingress Protection (IP) Rating | IP52 |
| Cable Type Included | USB |
| Scanning Capability | 1D/2D |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: Newland
Manufacturer Part Number: NLS-HR3300-BT
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: Marlin
Product Model: HR33.../>Product Name: HR33 Marlin Bluetooth
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:
Barcode Symbology Supported:
Light Source: Laser
Image Sensor Type: CMOS
Depth of Field:
Scanning Distance: 535 mm
Features:
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 48°
Field of View (Vertical): 30°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Drop Specification:
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface:
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 2600 mAh
Maximum Battery Run Time: 15 Hour
Maximum Battery Recharge Time: 6 Hour
Environmental Conditions
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Weight (Approximate): 210 g
Miscellaneous
Package Contents:HR33 Marlin Bluetooth Stand/Docking Station (NLS-HCD2333) USB cable (130cm fixed to stand)
Ingress Protection (IP) Rating: IP52
Application/Usage:
Software Supported:
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
The legacy continues with the latest HR33 Marlin Bluetooth, which offers effortless barcode capture thanks to Newland EMEA decoding technology. Cutting-edge scanning and decoding are showcased in a design that represents premium quality to become Newland's best wireless handheld 2D barcode reader so far. The HR33 Marlin Bluetooth, with its easily replaceable battery, is the ideal choice for uninterrupted barcode scanning.
Specifications
Manufacturer: Newland
Manufacturer Part Number: NLS-HR3300-BT
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: Marlin
Product Model: HR33
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:
- 1D
- 2D
Barcode Symbology Supported:
1D:
- Code 11
- Code 128
- Code39
- GS1-128(UCC/ENA-128)
- AIM 128
- ISBT 128
- Codabar
- Code 93
- UPC-A
- UPC-E
- Coupon
- GS1 Composite
- EAN-13
- EAN-8
- ISSN
- ISBN
- Interleaved 2 of 5
- Matrix 2 of 5
- Industrial 2 of 5
- ITF-6
- ITF-14,
- Standard 2 of 5
- China Post 25
- MSI-Plessey
- Plessey
- GS1Databar(RSS)
- Code 49
- Code 16K
2D:
- PDF417
- QR Code
- Micro QR
- Data Matrix
- Aztec
- Maxi Code
- Chinese Sensible Code
- GM Code
- Micro PDF417,
- Code One
OCR:
- Passport OCR
- Chinese ID Card
- China Travel Permit OCR
Light Source: Laser
Image Sensor Type: CMOS
Depth of Field:
- Depth of Field EAN 13 (13mil) 40mm-535mm
- Depth of Field Code 39 (5mil) 50mm-230mm
- Depth of Field PDF417 (6.7mil) 45mm-215mm
- Depth of Field DataMatrix (10mil) 30mm-245mm
Scanning Distance: 535 mm
Features:
- Beep
- Notification LED
- Vibration
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 48°
Field of View (Vertical): 30°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Drop Specification:
- 1.5m drops to concrete
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface:
- USB
- Keyboard Wedge
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 2600 mAh
Maximum Battery Run Time: 15 Hour
Maximum Battery Recharge Time: 6 Hour
Environmental Conditions
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Weight (Approximate): 210 g
Miscellaneous
Package Contents:
Ingress Protection (IP) Rating: IP52
Application/Usage:
- Retail
- Warehouse
- Healthcare
Software Supported:
- EasySet Configuration Tool
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
