1082112864
Newland HR33 Marlin Corded
£88.87
Limited Stock: Only 0 available

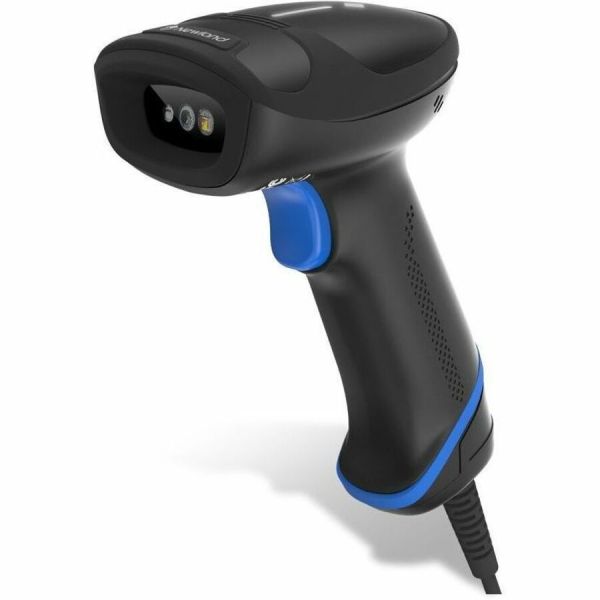

Newland HR33 Marlin Corded
Newland HR33 Marlin Corded is available to buy in increments of 1
Categories: Barcode Scanners, Default Category
| Application/Usage | Retail/Healthcare/Hospitality |
|---|---|
| Host Interface | USB/Serial |
| Product Type | Barcode Scanner |
| Limited Warranty | 5 Year |
| Connectivity Technology | Cable |
| Form Factor | Handheld |
| Brand Name | Newland |
| Scanning Distance | 535 mm |
| Light Source | Laser |
| Image Sensor Type | CMOS |
| Product Family | Marlin |
| Stand Included | Yes |
| Ingress Protection (IP) Rating | IP52 |
| Cable Type Included | USB |
| Scanning Capability | 1D/2D |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE)/Restriction of Hazardous Substances (RoHS) 2 |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: Newland
Manufacturer Part Number: NLS-HR3300-SA
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: Marlin
Product Model: HR33
...n>Product Name: HR33 Marlin Corded
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:
Barcode Symbology Supported:
Light Source: Laser
Image Sensor Type: CMOS
Depth of Field:
Scanning Distance: 535 mm
Features:
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 48°
Field of View (Vertical): 30°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Drop Specification:
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Interfaces/Ports
Host Interface:
Power Description
Input Current: 281 mA
Standby Current: 129 mA
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Weight (Approximate): 140 g
Miscellaneous
Package Contents:HR33 Marlin Corded 3.5 mtr. Coiled USB Cable (CBL030UA) Smart Adjustable Stand (NLS-STD23-33-SA)
Ingress Protection (IP) Rating: IP52
Application/Usage:
Software Supported:
Environmental Compliance:
Warranty
Limited Warranty: 5 Year
The legacy continues with the latest HR33 Marlin Corded, which offers effortless barcode capture thanks to Newland EMEA decoding technology. Cutting-edge scanning and decoding are showcased in a design that represents premium quality to become Newland's best ever handheld 2D barcode reader so far. The HR33 Marlin Corded features a light and ergonomic design, making it the ideal companion for high-intensity scanning.
Specifications
Manufacturer: Newland
Manufacturer Part Number: NLS-HR3300-SA
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: Marlin
Product Model: HR33
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:
- 1D
- 2D
Barcode Symbology Supported:
1D:
- Code 11
- Code 128
- Code39
- GS1-128(UCC/ENA-128)
- AIM 128
- ISBT 128
- Codabar
- Code 93
- UPC-A
- UPC-E
- Coupon
- GS1 Composite
- EAN-13
- EAN-8
- ISSN
- ISBN
- Interleaved 2 of 5
- Matrix 2 of 5
- Industrial 2 of 5
- ITF-6
- ITF-14,
- Standard 2 of 5
- China Post 25
- MSI-Plessey
- Plessey
- GS1Databar(RSS)
- Code 49
- Code 16K
2D:
- PDF417
- QR Code
- Micro QR
- Data Matrix
- Aztec
- Maxi Code
- Chinese Sensible Code
- GM Code
- Micro PDF417,
- Code One
OCR:
- Passport OCR
- Chinese ID Card
- China Travel Permit OCR
Light Source: Laser
Image Sensor Type: CMOS
Depth of Field:
- Depth of Field EAN 13 (13mil) 40mm-535mm
- Depth of Field Code 39 (5mil) 50mm-230mm
- Depth of Field PDF417 (6.7mil) 45mm-215mm
- Depth of Field DataMatrix (10mil) 30mm-245mm
Scanning Distance: 535 mm
Features:
- Beep
- Notification LED
- Vibration
- Ergonomic Design
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 48°
Field of View (Vertical): 30°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Drop Specification:
- 1.5m drops to concrete
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Interfaces/Ports
Host Interface:
- USB
- Serial
Power Description
Input Current: 281 mA
Standby Current: 129 mA
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Weight (Approximate): 140 g
Miscellaneous
Package Contents:
Ingress Protection (IP) Rating: IP52
Application/Usage:
- Retail
- Healthcare
- Hospitality
Software Supported:
- EasySet Configuration Tool
Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS) 2
Warranty
Limited Warranty: 5 Year
