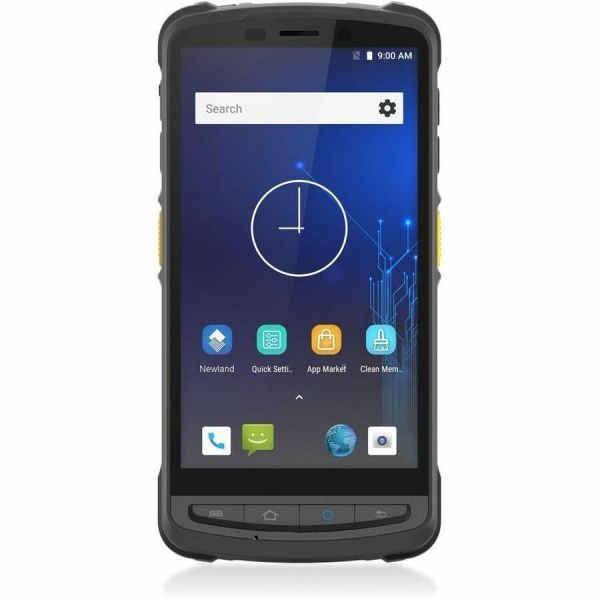

Newland MT90 Orca III Handheld Terminal

Marketing Information

The MT90 Orca III Mobile Computer is designed with an optimal form factor for a full touchscreen mobile computer with barcode scanner. Its consumer-style design and Android operating system makes the experience similar to picking up a personal mobile phone. This makes for an intuitive use and a limited need for staff training.

From the moment you take it out of the box, the MT90 Orca III is easy to use.

The device is rugged and designed to withstand everyday drops and bumps, but no compromises were made in its ergonomics. Equipped with the standard rubber boot, it has passed drop tests of up to 1.5m. Plus at only 270g, it's easy to carry around all day. A hand strap, wrist lanyard or optional holster help you to keep it ...by your side - ready to use - during all other activities.

Specifications
Manufacturer: Newland
Manufacturer Part Number: NLSMT9055W4X
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Model: MT90 Orca III
Product Name: MT90 Orca III Handheld Terminal
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Image Sensor Type: CMOS
Image Sensor Resolution: 1280 x 800
Light Source: Laser
Google Mobile Services (GMS): Yes
Multi-SIM Supported: Yes
Number of SIM Card Supported: 1
SIM Size Supported: Micro
Drop Specification:

Drop|1.5m, 1.8m with rubber boot

Illumination Type: LED
Illumination Color: White
Scan Mode: Trigger
Scan Rate: 60 frames/second
Processor & Chipset
Processor Core: Octa-core (8 Core)
Processor Speed: 2 GHz
Memory
Standard Memory: 4 GB
Flash Memory: 64 GB
Memory Card Supported: microSD
Display & Graphics
Screen Size: 12.7 cm (5")
Screen Mode: HD
Screen Resolution: 1280 x 720
Touchscreen Information
Touchscreen: Yes
Keyboard/Keypad
Number of Keys: 10
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n/ac
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0
Near Field Communication (NFC): Yes
Cellular Network Supported:

• GSM
• CDMA
• WCDMA
• TD-SCDMA

Cellular Data Connectivity Technology:

• 2G
• 3G
• 4G
• LTE

GPS: Yes
Global Navigation Satellite System (GNSS) Supported: GLONASS
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Rear Camera: Yes
Rear Camera Resolution: 8 Megapixel
Software
Operating System: Android 11
Software Supported:

• Ndevor
• SOTI
• Airwatch

Power Description
Power Source:

• AC Power
• Battery

Input Voltage:

• 100 V AC
• 240 V AC
• 5 V DC

Battery Information
Battery Capacity: 4500 mAh
Battery Included: Yes
Maximum Battery Run Time: 10 Hour
Battery Voltage: 3.80 V
Maximum Battery Recharge Time: 5 Hour
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -20°C to 55°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Rugged: Yes
Height: 20 mm
Width: 78 mm
Length: 155 mm
Weight (With Battery): 270 g
Miscellaneous
Package Contents:

• MT90 Orca III Handheld Terminal
• USB-C Cable
• Battery
• Rubber Boot
• Screen Protector
• Multiplug Adapter

Application/Usage:

• Healthcare
• Logistics
• Retail
• Hospitality

Ingress Protection (IP) Rating: IP65
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
