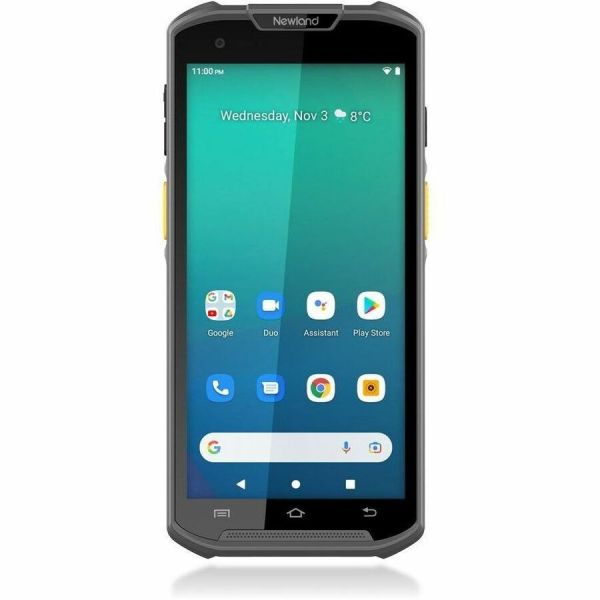

Newland MT93 Megattera Pro

Marketing Information

Running on Android 13 OS, the MT93 Megattera Pro combines a user-friendly interface with a rugged yet slim exterior. Thanks to its angled scan engine, it effectively reduces discomfort and strain that can arise from prolonged scanning. The device's powerful octa-core processor guarantees smooth performance throughout a full work shift, while the WiFi 6 and 4G guarantee steady, fast, and secure connectivity even in busy multi-user environments.

Excel in multi-user workspaces with WiFi 6 powered performance

The MT93 Megattera Pro is an ideal solution for busy environments such as warehouses, retail outlets, events, and hospitality venues. Its WiFi 6 technology is exceptional in managing a large number of users and provides... superior performance in terms of data speeds and efficiency. This helps to minimize interruptions and allows you to concentrate on critical tasks.

Specifications
Manufacturer: Newland
Manufacturer Part Number: NLSMT9356W4AS
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Model: MT93 Megattera Pro
Product Name: MT93 Megattera Pro
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Image Sensor Type: CMOS
Image Sensor Resolution: 1280 x 800
Light Source: Laser
Power Supply Included: Yes
Google Mobile Services (GMS): Yes
Sensor Type:

• Light Sensor
• Proximity
• Gravity Sensor
• Gyroscope
• eCompass

Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
SIM Size Supported: Nano
Brightness: 400 cd/m²
Features:

• Gorilla Glass
• Water Resistant
• Vibrator

Drop Specification:

1.5m drops to concrete (for six sides, one drop per side)

Illumination Type: LED
Illumination Color: White
Scan Mode: Trigger
Scan Rate: 60 frames/second
Depth of Field:

• Depth of Field EAN 13 (13mil) - 70mm-610mm
• Depth of Field Code 39 (5mil) - 110mm-290mm
• Depth of Field PDF417 (6.7mil) - 110mm-230mm
• Depth of Field DataMatrix (10mil) - 110mm-260mm
• Depth of Field QR (15mil) - 55mm-410mm

Processor & Chipset
Processor Model: MT8781
Processor Core: Octa-core (8 Core)
Processor Speed: 2.20 GHz
Memory
Standard Memory: 4 GB
Flash Memory: 64 GB
Memory Card Supported: microSD
Display & Graphics
Screen Size: 14 cm (5.5")
Screen Resolution: 1440 x 720
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Keyboard/Keypad
Buttons & Keys:

Virtual on-screen buttons: Menu, Home, Back; Physical buttons: Left and right Scan keys, Volume +/-, Power

Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/k/v/r
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2 BLE
Near Field Communication (NFC): Yes
Cellular Network Supported:

• WCDMA
• CDMA

Cellular Data Connectivity Technology:

• 4G
• 3G
• 2G
• EVDO
• LTE

GPS: Yes
Global Navigation Satellite System (GNSS) Supported: GLONASS
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Front Camera: Yes
Front Camera Resolution: 5 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Software
Operating System: Android 13
Software Supported:

• Acuscan
• Ndevor

Power Description
Power Source: Battery
Battery Information
Battery Capacity: 5000 mAh
Battery Included: Yes
Battery Voltage: 3.85 V
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -20°C to 55°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Phone-size
Rugged: Yes
Height: 15.9 mm
Width: 74 mm
Length: 159 mm
Weight (With Battery): 277 g
Miscellaneous
Package Contents:

• MT93 Megattera Pro
• Protective case
• USB-C cable
• Battery
• Screen protector
• Hand strap
• Multiplug adapt

Application/Usage:

• Retail
• Warehouse
• Logistics
• Hospitality

Ingress Protection (IP) Rating: IP67
Warranty
Limited Warranty: 2 Year
