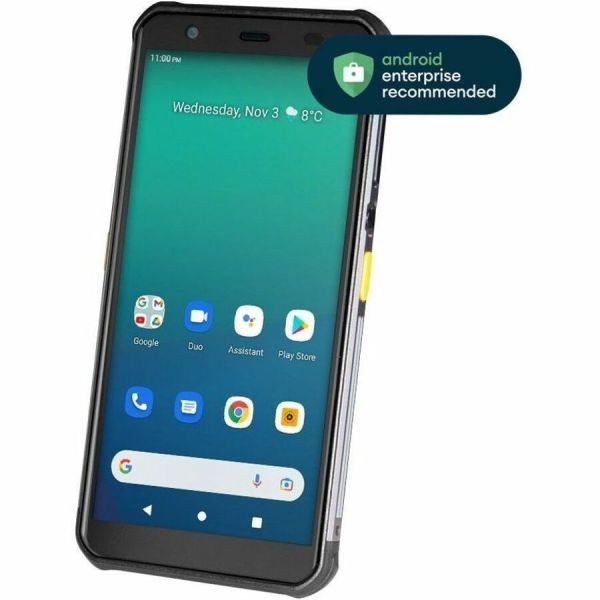

Newland NFT10 Pilot Pro

Marketing Information

Designed to bridge the gap between a rugged PDA and a sleek & stylish smartphone, the NFT10 Pilot Pro offers businesses a high quality Android mobile computer. At 5.7", it's one of the largest durable touchscreens on the market. It features edge to edge screen protection by a metal housing that's designed to withstand high drops and offer reliable performance in all weathers. The NFT10 Pilot Pro is also available in a white healthcare version.

Work smarter, wherever you are. You're the pilot.

The NFT10 Pilot Pro uses an ultra-slim megapixel barcode scanner with left and right scan solutions for comfortable data capture, all housed in a design that matches the look and feel of high-end modern consumer phones. With Newland's ...standard warranty, extended warranty options and Ndevor MDM solutions, the NFT10 Pilot Pro has all the style, functionality and support needed for any enterprise.

Specifications
Manufacturer: Newland
Manufacturer Part Number: NLSNFT1055W4
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Model: NFT10 Pilot Pro
Product Name: NFT10 Pilot Pro
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Image Sensor Type: CMOS
Light Source: Laser
Power Supply Included: Yes
Google Mobile Services (GMS): Yes
Sensor Type:

• Light Sensor
• Proximity
• G-sensor

Multi-SIM Supported: Yes
Features:

• Water Resistant
• Gorilla Glass

Drop Specification: 1.5m drops to concrete (BG/T 2423.8-1995 PART2), 1.22m drops to concrete MIL-STD-81 0G

Processor & Chipset
Processor Core: Octa-core (8 Core)
Processor Speed: 2 GHz
Memory
Standard Memory: 4 GB
Flash Memory: 64 GB
Memory Card Supported: microSD
Display & Graphics
Screen Size: 14.5 cm (5.7")
Screen Resolution: 1440 x 720
Touchscreen Information
Touchscreen: Yes
Keyboard/Keypad
Buttons & Keys: 5 keys (side keys included)

Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0
Near Field Communication (NFC): Yes
Cellular Network Supported:

• GSM
• WCDMA
• CDMA
• TD-SCDMA

Cellular Data Connectivity Technology:

• GPRS
• EDGE
• EVDO
• LTE
• 4G
• 3G
• 2G

GPS: Yes
Global Navigation Satellite System (GNSS) Supported: BeiDou/Galileo/GLONASS
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Front Camera: Yes
Front Camera Resolution: 2 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Software
Operating System: Android 11
Software Supported:

• Ndevor
• Acuscan

Power Description
Power Source: Battery
Battery Information
Battery Capacity: 4800 mAh
Battery Included: Yes
Battery Voltage: 3.80 V
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -30°C to 60°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Phone-size
Rugged: Yes
Weight (With Battery): 231 g
Miscellaneous
Package Contents:

NFT10 Pilot Pro

Battery

Protective case

Wrist strap

USB cable

Multiplug adapter

Application/Usage:

• Healthcare
• Logistics
• Retail

Ingress Protection (IP) Rating: IP67
Warranty
Limited Warranty: 2 Year
Additional Warranty Information:

Standard-2 years
