Newland WD3 Badge Scanner
£125.07
Limited Stock: Only 0 available
Newland WD3 Badge Scanner
Newland WD3 Badge Scanner is available to buy in increments of 1
Categories: Barcode Scanners, Default Category
| Application/Usage | Healthcare/Hospitality/Retail/Industrial |
|---|---|
| Host Interface | USB |
| Product Type | Barcode Scanner |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wireless |
| Form Factor | Modular |
| Brand Name | Newland |
| Scanning Distance | 550 mm |
| Light Source | Laser |
| Bluetooth | Yes |
| Image Sensor Type | CMOS |
| Product Family | Nwear |
| Product Color | Black |
| Color Family | Black |
| Ingress Protection (IP) Rating | IP65 |
| Cable Type Included | USB |
| Scanning Capability | 1D/2D |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)/Waste Electrical and Electronic Equipment Directive (WEEE) |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
| Ethics - Alert | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: Newland
Manufacturer Part Number: WD3-BS30
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: Nwear
Product Model: WD3
Product Name: WD3 Badge Scanner
Product Type...pan>: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:
Barcode Symbology Supported:
Light Source: Laser
Image Sensor Type: CMOS
Depth of Field:
Scanning Distance: 550 mm
Cable Type Included: USB
Field of View (Horizontal): 40°
Field of View (Vertical): 25°
Reading Angle (Skew): 55°
Reading Angle (Pitch): 55°
Reading Angle (Roll): 360°
Drop Specification: 1.2m/3.94ft
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Modular
Color Family: Black
Product Color: Black
Height: 10.6 mm
Width: 110.8 mm
Depth: 62.3 mm
Weight (Approximate): 53 g
Miscellaneous
Package Contents:
Ingress Protection (IP) Rating: IP65
Application/Usage:
Software Supported: EasySet Configuration Tool
Environmental Compliance:
Warranty
Limited Warranty: 2 Year

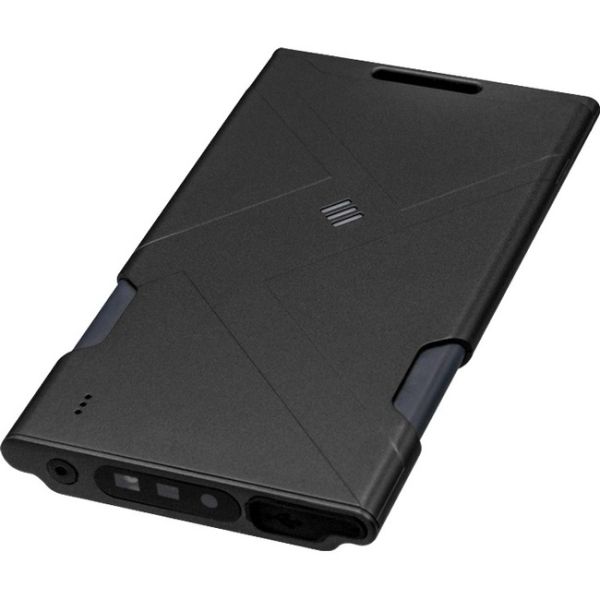

The WD3 is a feather-light badge scanner that packs high-performance in a compact yet sturdy design. You can use the scanner as a stand-alone device or wear it on a lanyard as a badge.
#Gearup with the WD3
The lightweight WD3 Badge Scanner ensures reduced weariness and uninterrupted workflow to make your everyday tasks easier to perform.
Specifications
Manufacturer: Newland
Manufacturer Part Number: WD3-BS30
Manufacturer Website Address: http://www.newland-id.com
Brand Name: Newland
Product Line: Nwear
Product Model: WD3
Product Name: WD3 Badge Scanner
Product Type...pan>: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:
- 1D
- 2D
Barcode Symbology Supported:
1D:
Code 11, Code 128, Code39, GS1-128, AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISBN, ISSN, InterLeaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF6, Standard 2/5, COOP 2/5, China Post 25, MSI Plessey, Plessey, GS1 Databar (RSS)
2D:
PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensible Code, Maxicode, GM Code
Light Source: Laser
Image Sensor Type: CMOS
Depth of Field:
- EAN 13 (13mil) 65mm-550mm
- Code 39 (5mil) 120mm-330mm
- PDF417 (6.67mil) 120mm-240mm
- Data Matrix (10mil) 125mm-240mm
- QR (15mil) 40-370mm
Scanning Distance: 550 mm
Cable Type Included: USB
Field of View (Horizontal): 40°
Field of View (Vertical): 25°
Reading Angle (Skew): 55°
Reading Angle (Pitch): 55°
Reading Angle (Roll): 360°
Drop Specification: 1.2m/3.94ft
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Modular
Color Family: Black
Product Color: Black
Height: 10.6 mm
Width: 110.8 mm
Depth: 62.3 mm
Weight (Approximate): 53 g
Miscellaneous
Package Contents:
- WD3 Badge Scanner
- Neck lanyard
- Retractable belt clip
- USB-C cable
Ingress Protection (IP) Rating: IP65
Application/Usage:
- Healthcare
- Hospitality
- Retail
- Industrial
Software Supported: EasySet Configuration Tool
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 2 Year
