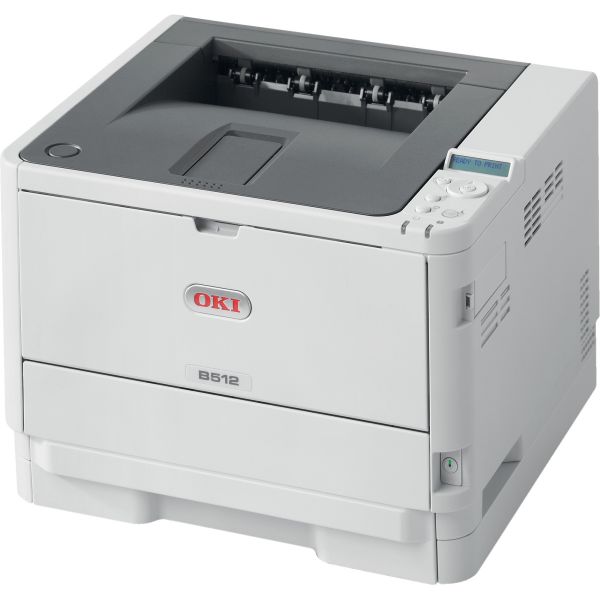

Oki B512dn LED Printer

Marketing Information

A great choice for super fast, high-quality printing at a minimal cost, the B512dn serves workgroups with ease. Flexible paper handling, ultra-reliable digital LED technology and a PostScript emulation deliver great results across a wide range of applications, while extra high capacity toner cartridges help reduce running costs and maximise uptime.

Fast performance - Super-quick A4 print speeds of up to 45ppm

Built for maximum speed and efficiency, the B512dn races through large jobs in minimal time, producing up to 45 pages per minute. A powerful 667MHz processor and 512MB RAM plus 3GB-embedded Multi-Media Card (eMMC) memory all contribute to faster throughput.

• Time to first print in 4.5 seconds
• ...A4 print speeds of up to 45ppm
• 667MHz processor and 512MB RAM + 3GB eMMc memory

Great results - High-quality print capability

Containing high-performance, reliable digital LED technology with 1200 x 1200dpi resolution, the B512dn produces excellent fine-detail image quality and crisp, clear documents. Suitable for a range of different tasks, the B512dn prints on paper sizes from A6 to A4 and card stock up to 163gsm.

• Sharp, 1,200 x 1,200dpi print resolution
• Print on media sizes from A6 to A4
• 530 sheet paper tray and 530 sheet second tray option
• Auto-sensing 100-sheet multi-purpose tray (MPT) for different paper types

Flexible use - Great for shared workgroups, mobile print option

Compact and with a range of flexible features, the easy-to-use B512dn fits in any office space and features a secure print option to protect confidential documents. Ideal for super fast personal printing or for sharing on the network, the quick device is Google Cloud Print Ready, as well as being compatible with AirPrint by Apple Inc, enabling remote printing from smartphones and tablets when away from the office, without having to connect directly.

• PCL/PostScript emulations
• 10/100/1000 Ethernet
• Optional Wireless LAN 802.11a/b/g/n
• Google Cloud print ready and compatible with AirPrint by Apple inc
• Secure printing protects confidential documents

Eco Features - Energy And Cost-Saving Functions, High-Capacity Consumables

With a choice of high-yield consumables capable of printing up to 12,000 pages, the B512dn enables busy workgroups to print more, for longer. Auto-Off mode automatically powers off, reducing energy consumption to 1.4W when the printer is not in use, while Toner Save function reduces toner usage when printing draft or internal documents.

• Choose from 3k, 7k or extra high-capacity 12k toner
• Duplex printing as standard reduces paper usage
• Eco-mode reduces energy consumption
• 1.4W Deep Sleep mode and super-fast recovery time
• Auto Power Off function
• Energy Star 2.0 compliant

Specifications
Manufacturer: OKI Data
Manufacturer Part Number: 45858303
Manufacturer Website Address: http://www.oki.co.uk
Brand Name: Oki
Product Series: B500
Product Model: B512dn
Product Name: B512dn LED Printer
Product Type: LED Printer
Technical Information
Recommended Use: Plain Paper Print
Print Color Capability: Monochrome
Maximum Mono Print Speed (ppm): 45
Maximum Print Resolution (dpi): 1200 x 1200
USB Direct Printing: Yes
Duplex Printing: Automatic
Processor & Chipset
Processor Speed: 667 MHz
Memory
Maximum Memory Supported: 512 MB
Interfaces/Ports
USB: Yes
Network & Communication
Ethernet: Yes
Media Types & Handling
Media Size:

• A4 - 210.82 mm x 297.18 mm
• A5 - 147.32 mm x 210.82 mm
• B5 - 175.26 mm x 248.92 mm
• A6 - 104.14 mm x 147.32 mm
• Letter - 215.90 mm x 279.40 mm
• Legal - 215.90 mm x 355.60 mm
• Executive - 266.70 mm x 184.15 mm
• Statement - 215.90 mm x 139.70 mm
• Monarch Envelope
• Com 9 Envelope - 96.52 mm x 223.52 mm
• Com10 Envelope - 121.92 mm x 241.30 mm
• DL Envelope - 109.22 mm x 218.44 mm
• C5 Envelope - 228.60 mm x 169.67 mm
• C6 Envelope - 114.30 mm x 161.80 mm
• 101.60 mm x 152.40 mm
• 127 mm x 177.80 mm
• Banner - 215.90 mm x 1320.80 mm
• Custom Size
• 86.36 mm x 139.70 mm

Number of Input/Multipurpose Trays Installed: 2
Standard Input Media Capacity: 630 Sheets
Reliability
Duty Cycle: 100000
Power Description
Power Source: AC Supply
Input Voltage: 230 V AC
Physical Characteristics
Form Factor: Desktop
Height: 286 mm
Width: 387 mm
Depth: 394 mm
Weight (Approximate): 13 kg
Miscellaneous
Package Contents:

• B512dn LED Printer
• 1 x Image Drum
• 1 X Starter Toner Cartridge
• DVD-ROM
• Power Cable

Certifications & Standards:

GS

Energy Star: Yes
Warranty
Limited Warranty: 3 Year
