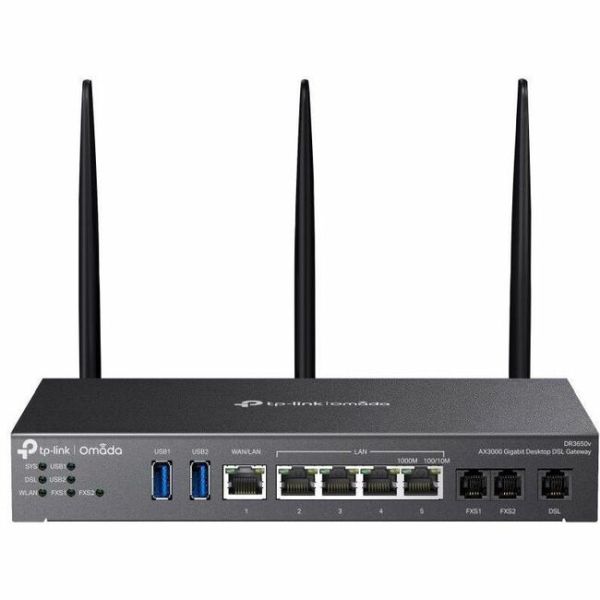

Omada Pro DR3650v Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway

Marketing Information

Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway

• VDSL2 35b (Up to 350 Mbps)
• VDSL2/ADSL2+/ADSL2/ADSL Compatibility
• 2402 Mbps + 574 Mbps
• 5 × RJ45 Gigabit Ports
• IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
• VoIP Support
• ...l-ui" contenteditable="false">Centralized Management
• Load Balancing Between DSL and Ethernet WAN

Get the Higher DSL Speeds Cost-Effectively

The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.

DR3650v's Super VDSL

350 Mbps

VDSL2

100 Mbps

AVDSL2+

24 Mbps

Versatile Connectivity

DR3650v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.

Up to 3.0 Gbps Business-Level WiFi 6 Empowers Small and Medium Business | HE 160

Double the data at peak transmission times on a single stream

OFDMA

Enables different devices to share one transmission stream, increasing efficiency

1024 QAM

25% more data encoded at one time

5 GHz  2 Streams 2402 Mbps

2.4 GHz  2 Streams 574 Mbps

Software Defined Networking (SDN) with Cloud Access

Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.

High-Security and High-PerformanceVPN

IPSec/PPTP/L2TP/GRE/WireGuard/ Open VPN/ SSL VPN easily builds secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: DR3650V
Manufacturer Website Address: http://www.tp-link.com
Brand Name: Omada Pro
Product Model: DR3650v
Product Name: DR3650v Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
Product Type: Modem/Wireless Router
Technical Information
Wi-Fi Generation: Wi-Fi 6
Network Band: Dual Band
MU-MIMO Technology: Yes
Memory Technology: DDR4 SDRAM
Standard Memory: 512 MB
Wireless Specifications
Broadband Transmission Technology:

• Ethernet
• VDSL2
• ADSL2+
• ADSL2
• ADSL

Wireless LAN Standard: IEEE 802.11ax
ISM Band: Yes
UNII Band: Yes
ISM Maximum Frequency: 2.40 GHz
UNII Maximum Frequency: 5 GHz
Total Number of Antennas: 3
Number of External Antennas: 3
Total Wireless Transmission Speed: 372 MB/s
Encryption Standard:

• AES (256-bit)
• SHA-1
• SHA-256
• SHA-384
• SHA-512
• WPA-Personal
• WPA2-Personal
• WPA3-Personal
• WPA-ENT
• WPA2-ENT
• WPA3-ENT

Firewall Type: NAT
Wi-Fi Mesh System: Yes
Wireless Performance: AX3000
Interfaces/Ports
Total Number of Network Ports: 5
Number of Network (RJ-45) Ports: 4
USB: Yes
Number of Broadband (RJ-45) Ports: 1
USB Standard: USB 3.0
Network & Communication
Ethernet Technology: Gigabit Ethernet
VPN Supported: Yes
Storage
Flash Memory Capacity: 256 MB
Physical Characteristics
Form Factor:

• Desktop
• Wall Mountable

Height: 35.6 mm
Width: 132.1 mm
Depth: 226.1 mm
Miscellaneous
Package Contents:

• DR3650v Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
• Power Adapter
• Ethernet Cable
• Phone Cable
• Quick Installation Guide
• Silicone Feet
• Detachable Antenna

Certifications & Standards:

CE

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
