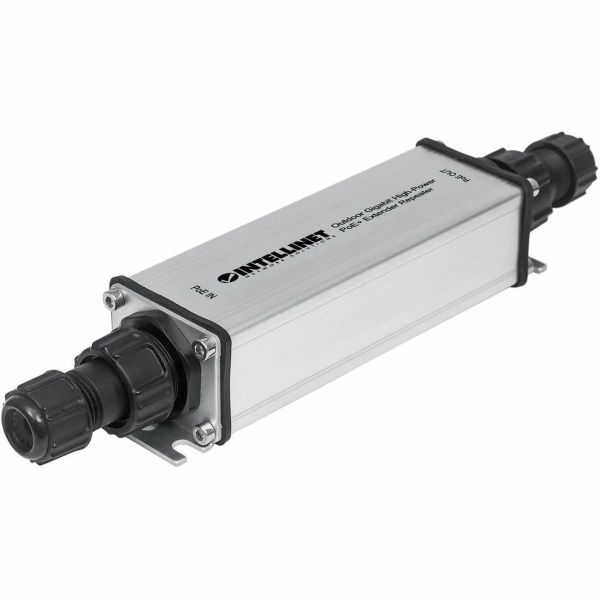

Intellinet Outdoor Gigabit High-Power PoE+ Extender Repeater

£118.90
Limited Stock: Only 0 available
Intellinet Outdoor Gigabit High-Power PoE+ Extender Repeater
Intellinet Outdoor Gigabit High-Power PoE+ Extender Repeater is available to buy in increments of 1
Maximum Extended Range 100 m
Product Type Network Extender
Brand Name Intellinet
Ethics - Environment Rating Coming Soon
Ethics - Animal Rating Coming Soon
Ethics - Human Rating Coming Soon
Ethics - Integrity Rating Coming Soon
Ethics - Durability Rating Coming Soon

Description

Marketing Information

Extend the range of a PoE connection — even in harsh outdoor conditions.

The Intellinet Network Solutions Outdoor Gigabit High-Power PoE+ Extender Repeater (561211) is designed to extend connection distances from a PoE source to an output device up to 100 m (328 ft.) via Cat5e or Cat6 cable. Cover even longer distances by cascading up to five extenders. The PoE+ Extender Repeater does not need an additional power supply, as it draws the power it needs from the PoE input.

Designed for Outdoor Use

With an IP65 rating and a vast operating temperature range of -40 – 75°C (-40 – 167°F), the Intellinet Network Solutions Outdoor Gigabit High-Power Power over Ethernet Extender Repeat...er can be deployed in harsh conditions, which sets it apart from its indoor counterpart, the Intellinet Network Solutions PoE+ Extender (560962).

Simple Installation

Simply connect the "PoE In" port with your PoE injector or PoE switch and connect the "PoE Out" with the PoE device that you wish to connect (e.g., a VoIP phone or a PoE network camera). That's it. There is nothing to configure. It simply could not be any easier.

Reduced Wiring Costs

No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port and use the existing Cat5 cabling to deliver DC power as well as transfer data.

Power over Ethernet 802.3at Compliant

The Intellinet Network Solutions Outdoor Gigabit High-Power PoE+ Extender Repeater supports the IEEE 802.3at protocol. It is designed to forward data at Gigabit speeds and provide up to 25 watts of input power to a connected IEEE 802.3af- or IEEE 802.3at-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance to 200 m (656 ft.).

Cascading Power

Daisy-chaining multiple PoE extenders increase the transmission distance even farther. Be advised that each added PoE extender draws up to 4 W of usable PD power, and additional power losses will occur as the cable length increases.


Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 561211
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Model: 561211
Product Name: Outdoor Gigabit High-Power PoE+ Extender Repeater
Product Type: Network Extender
Technical Information
Maximum Extended Range: 100 m
Maximum Data Transfer Rate: 125 MB/s
Interfaces/Ports
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Physical Characteristics
Product Material: Metal
Height: 30 mm
Width: 38 mm
Length: 145 mm
