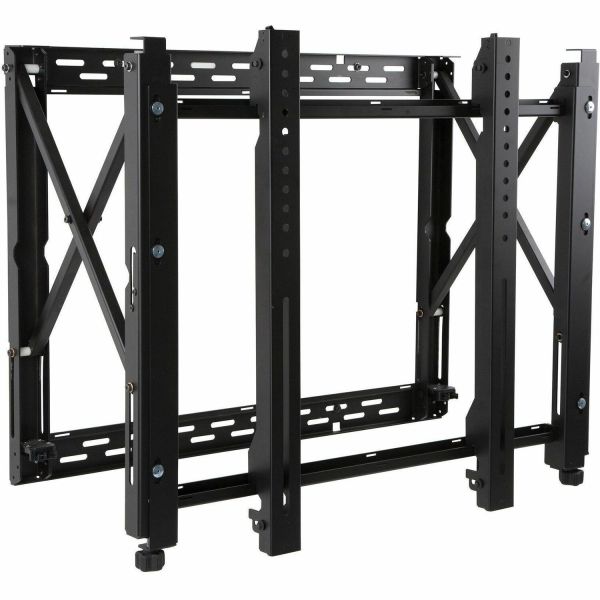

SmartMount® Full Service Video Wall Mount with Quick Release for 65" to 98" Displays

Marketing Information

The SmartMount® Full Service Video Wall Mount with Quick Release offers an easy to install and service solution for both landscape and portrait displays. Designed for quick service access in recessed video wall applications, the DS-VW795-QR provides versatility for integrators. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. Featuring tool-less micro-adjustment at eight points, the mounts can overcome uneven walls to create a seamless video wall display. In addition, custom wall plate spacers eliminate the guesswork and on-site calculations, reducing installation time and cost.

...cript:void(0)" onclick="javascript:window.open('//content.etilize.com/mini-site/en_uk/1028840290.html','_blank','height=800,width=780,resizable=yes,scrollbars=yes,toolbar=no,menubar=no,location=no,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: Peerless Industries, Inc
Manufacturer Part Number: DS-VW795-QR
Manufacturer Website Address: http://www.peerless-av.eu.com
Brand Name: SmartMount®
Product Series: DS-VW795-QR
Product Model: DS-VW795-QR
Product Name: Full Service Video Wall Mount with Quick Release for 65" to 98" Displays
Packaged Quantity: 1 Unit
Product Type: Wall Mount
Product Information
Device Supported:

• Video Wall
• Display

Maximum Load Capacity: 102.06 kg
Minimum Screen Size Supported: 65" (165.10 cm)
Maximum Screen Size Supported: 98" (248.92 cm)
Minimum Adjustable Depth: 9.14 cm (3.60")
Maximum Adjustable Depth: 11.18 cm (4.40")
Features:

• Quick Release Mechanism
• Adjustable
• Cable Management
• Adjustable Depth
• Easy to Install
• Tool-less Micro-Adjustment
• Articulating

Orientation: Landscape/Portrait
Mount Profile: Recessed
Mount Function: Video Wall
Mount Surface: Wall
Physical Characteristics
Color Family: Black
Product Color: Black
Finishing: Powder Coated
VESA Mount Compatible: Yes
Mounting Pattern:

• 200 x 200
• 600 x 600

Form Factor: Wall Mountable
Height: 70.05 cm (27.58")
Width: 83.49 cm (32.87")
Depth: 11.25 cm (4.43")
Weight (Approximate): 18.14 kg
Miscellaneous
Package Contents:

• Full Service Video Wall Mount with Quick Release For 65" to 98" Displays
• Wall Mount Assembly
• Mounting Attachment Rails
• Fasteners

Indoor/Outdoor: Indoor
Certifications & Standards: TAA, VESA
Manufacturer Product Class: Wall, Quick Release Pop-out
Assembly Required: Yes
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
