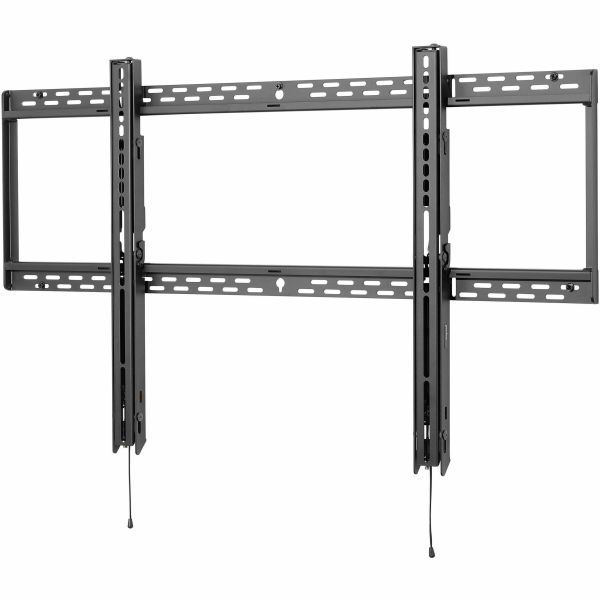

SmartMount® Universal Flat Wall Mount for 60" to 98" Displays

Marketing Information

Peerless-AV's SmartMountTM Universal Flat Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the SF680's robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount's built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning to display size of the mounted display.

...,'_blank','height=800,width=780,resizable=yes,scrollbars=yes,toolbar=no,menubar=no,location=no,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: Peerless Industries, Inc
Manufacturer Part Number: SF680P
Manufacturer Website Address: http://www.peerless-av.eu.com
Brand Name: SmartMount®
Product Series: SF680P
Product Model: SF680P
Product Name: Universal Flat Wall Mount for 60" to 98" Displays
Packaged Quantity: 1 Unit
Product Type: Wall Mount
Product Information
Device Supported: Display
Maximum Load Capacity: 158.76 kg
Minimum Screen Size Supported: 60" (152.40 cm)
Maximum Screen Size Supported: 98" (248.92 cm)
Features:

• Robust
• Kickstand
• Cable Management
• Vertical Adjustment
• Horizontal Adjustment
• Lateral Adjustment
• Latch Lock

Mount Pattern: Universal
Mount Profile: Low Profile
Mount Function:

• Cable Management
• Wall Mount

Mount Surface: Wall
Durability: Scratch Resistant
Physical Characteristics
Color Family: Black
Product Color: Semi-gloss Black
Finishing:

• Powder Coated
• Fused Epoxy

VESA Mount Compatible: Yes
Mounting Pattern:

• 1100 x 650
• 1111 x 745

Form Factor: Wall Mountable
Height: 69.80 cm (27.48")
Width: 116.21 cm (45.75")
Depth: 4.39 cm (1.73")
Weight (Approximate): 7.85 kg
Miscellaneous
Package Contents:

• Universal Flat Wall Mount for 60" to 98" Displays
• Wall and Display Installation Hardware
• Installation Instructions

Indoor/Outdoor: Indoor
Certifications & Standards: RoHS, TAA, VESA, UL, OSHPD
Manufacturer Product Class: Flat
Assembly Required: Yes
TAA Compliant: Yes
UL Listed: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
