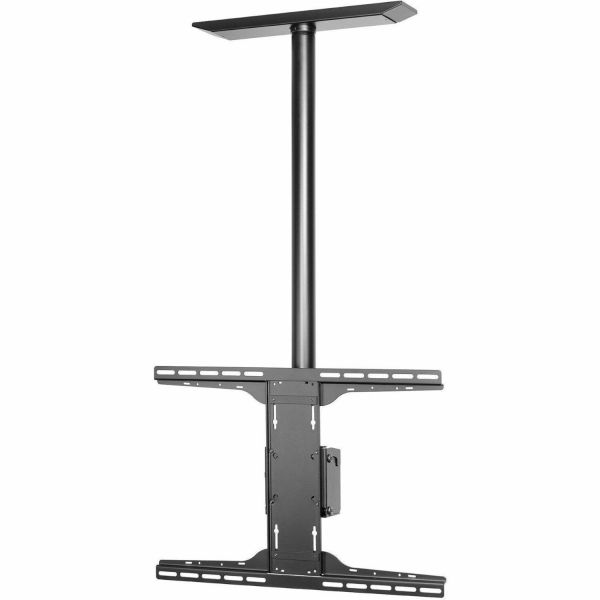

SmartMount® Universal Ceiling Mount for 32" to 90" Displays

Marketing Information

The SmartMount™ PLCM-UNL(-CP) Universal Ceiling Mounts utilize 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM-UNL kit combines the PLP-UNL Universal I-Shaped Adaptor plate, the PLCM-2 tilt box, and the EXT13 fixed length 1.5" NPT column, to deliver a drop of 36" for display mounting patterns of up to 600 x 400mm. When combined with a Peerless-AV® ceiling plate, it provides the perfect combination for flat panel ceiling mounting in sports facilities, airports, lobbies, or retail environments.

....etilize.com/mini-site/en_uk/1021013787.html','_blank','height=800,width=780,resizable=yes,scrollbars=yes,toolbar=no,menubar=no,location=no,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: Peerless Industries, Inc
Manufacturer Part Number: PLCM-UNL-CP
Manufacturer Website Address: http://www.peerless-av.eu.com
Brand Name: SmartMount®
Product Series: PLCM-UNL-CP
Product Model: PLCM-UNL-CP
Product Name: Universal Ceiling Mount for 32" to 90" Displays
Packaged Quantity: 1 Unit
Product Type: Ceiling Mount
Product Information
Device Supported: Flat Panel Display
Maximum Load Capacity: 68.04 kg
Minimum Screen Size Supported: 32" (81.28 cm)
Maximum Screen Size Supported: 90" (228.60 cm)
Features:

• Tilt
• 360° Swivel
• Antimicrobial
• 360° Yaw
• Adjustable Tilt
• Hook
• Cable Management

Orientation: Landscape/Portrait
Mount Pattern: Universal
Minimum Tilt Angle: -5°
Maximum Tilt Angle: 20°
Maximum Swivel Angle: 360°
Mount Function:

• Swivel
• Tilt

Mount Surface: Ceiling
Physical Characteristics
Color Family: Black
Product Color: Black
Finishing: Powder Coated
VESA Mount Compatible: Yes
Mounting Pattern: 600 x 400
Material Details:

Aluminum - Extension Column

Form Factor: Ceiling Mountable
Height: 112.34 cm (44.23")
Width: 61.93 cm (24.38")
Depth: 10.24 cm (4.03")
Weight (Approximate): 11.61 kg
Miscellaneous
Package Contents:

• Universal Ceiling Mount for 32" to 90" Displays
• CMJ470 Ceiling plate
• EXT103 extension column
• PLCM-2 tilt box
• PLP-UNL Universal I-Shaped Adaptor
• Mounting Hardware & Instructions

Application/Usage: Room
Indoor/Outdoor: Indoor
Certifications & Standards: RoHS, TAA, VESA, UL
Manufacturer Product Class: Ceiling Mount
TAA Compliant: Yes
UL Listed: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
