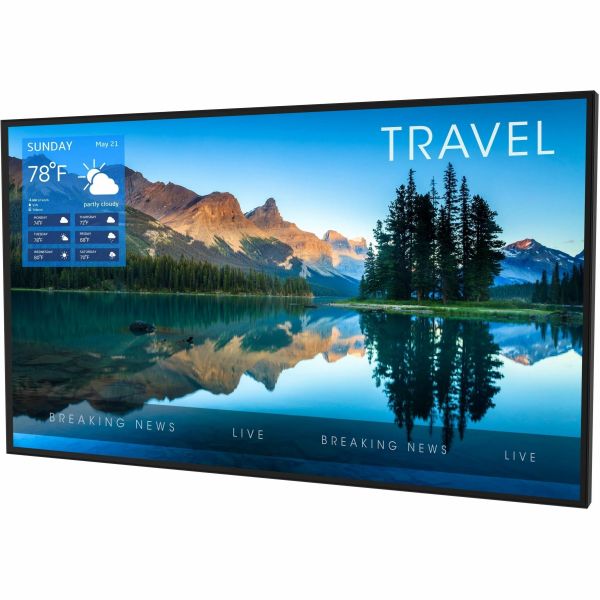

Xtreme™ High Bright Outdoor Displays

Marketing Information

There has never been an outdoor daylight readable display built to withstand the harsh outdoor elements like the Peerless-AV® Xtreme™ High Bright. Featuring a fully sealed, IP66 Rated design and a patented thermal exhaust system, Xtreme High Bright Outdoor Displays are fully protected against water, dust, moisture, and even insects. The display's cover glass is optically bonded, which increases the perceived contrast ratio and cuts down on glare, providing amazing picture quality even in direct sunlight. With an operating temperature range of -31°F to 140°F, Xtreme Displays are designed to thrive year-round outside, without worry of extreme hot or cold temperature waves. This High Bright line of commercial displays offer ...2500nits of light output to combat high ambient lighting conditions, while the ambient light sensor automatically adjusts the display's brightness to optimize the power consumption and enhance the viewing experience. Providing unmatched capabilities, Xtreme High Bright Outdoor Displays are the perfect digital signage or entertainment solution for any professional application.

More from the Manufacturer

Specifications
Manufacturer: Peerless Industries, Inc
Manufacturer Part Number: XHB554EUK
Manufacturer Website Address: http://www.peerless-av.eu.com
Brand Name: Xtreme™
Product Series: XHIGH-BR-OD
Product Model: XHB554-EUK
Product Name: High Bright Outdoor Displays
Packaged Quantity: 1
Product Type: LED-LCD TV
Technical Information
Screen Size Class: 55" (139.70 cm)
Viewable Screen Size: 54.60" (138.68 cm)
Backlight Technology: Direct LED
Response Time: 6 ms
Features:

• Ambient Light Sensor
• Anti-reflective
• Audio Return Channel (ARC)
• IP Control
• Brightness Scheduling
• Email Alerting
• Pixel Shift
• Power Scheduling

Orientation: Landscape/Portrait
Operation Hours: 24 Hours/7 Days
Ingress Protection (IP) Rating: IP66
Video
Standard Refresh Rate: 60 Hz
Native Contrast Ratio: 2,000:1
Brightness: 2500 cd/m²
Maximum Native Resolution: 1920 x 1080p
Colour Supported: 16.7 Million Colours
Colour Depth: 8-bit
Color Gamut: 72% NTSC
TV Formats Supported:

• 1080p
• 1080i
• 480i

Aspect Ratio: 16:9
Viewing Angle: 178° Horizontal/178° Vertical
Network & Communication
Ethernet: Yes
Interfaces/Ports
HDMI: Yes
Number of HDMI Inputs: 2
Total Number of HDMI Ports: 2
USB: Yes
Number of Composite Video Inputs: 1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of Analog Audio Outputs: 1
Number of Digital Audio Optical Output: 1
IR Repeater Connector Type: 1 x 3.5mm
Power Description
Input Voltage Range: 100 V AC - 240 V AC
Input Frequency Range: 50Hz - 60Hz
Energy & Performance
Maximum Operating Power Consumption: 215 W
Standby Power Consumption: < 0.5 W
Environmental Conditions
Operating Temperature Range: -35°C to 60°C
Physical Characteristics
Color Family: Black
Product Color: Black
VESA Mount Compatible: Yes
Mount Type: Wall Mount
Height: 74.24 cm (29.23")
Width: 127.18 cm (50.07")
Depth: 9.96 cm (3.92")
Weight (Approximate): 47.40 kg
Shipping Height: 86.69 cm (34.13")
Shipping Width: 139.70 cm (55")
Shipping Depth: 20.80 cm (8.19")
Shipping Weight (Approximate): 53.98 kg
Miscellaneous
Package Contents:

High Bright Outdoor Displays

Waterproof IR Learning Remote Control

User's Guide

Cable Ties

3mm Hex Wrench

Power Cord

IR Extender

Indoor/Outdoor: Outdoor
Additional Information:

IK10 Rated

IR Extender Input: 3.5mm (x1)

Certifications & Standards:

FCC Class A, cULus, CE, UKCA

UL Listed: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
