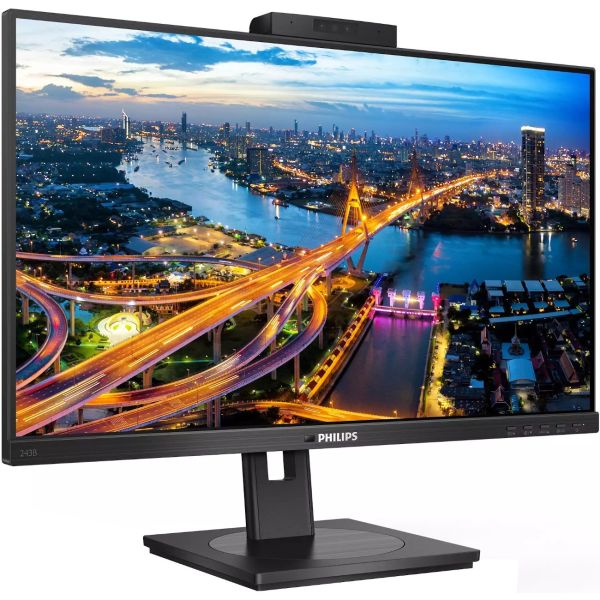

Philips LCD Monitor with USB Docking

Marketing Information

Simplify your connectionswith hybrid USB docking

• B Line
• 24 (23.8"/60.5 cm diag.)
• 1920 x 1080 (Full HD)

USB-C enables laptop power charging directly from a monitor

This Philips display features a built-in USB type-C docking station with power delivery. With intelligent and flexible power management, you can power charge your compatible laptop directly. Its slim, reversible USB-C connector allows for easy, one-cable docking. Simplify by connecting all your peripherals like keyboard, mouse and your RJ-45 Ethernet cable to the monitor's docking station. You can watch high-resolution video and transfer data at super-speed, while powering up and re-charging your notebook at... the same time.

IPS technology for full colours and wide viewing angles

IPS displays use advanced technology that gives you extra-wide viewing angles of 178/178 degrees, making it possible to view the display from almost any angle - even in 90-degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colours, making it ideal not only for Photos, films and web browsing, but also for professional applications that demand colour accuracy and consistent brightness at all times.

LowBlue Mode for easy-on-the-eyes productivity

Studies have shown that just as ultra-violet rays can cause eye damage, shortwave-length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, the Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.

Securely sign in with pop-up webcam with Windows Hello™

Philips' innovative and secure webcam pops up when you need it and securely tucks back into the monitor when you are not using it. The webcam is also equipped with advanced sensors for Windows Hello™ facial recognition, which conveniently logs you into your Windows devices in less than 2 seconds, 3 times faster than a password.

PowerSensor saves up to 80% energy costs

PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if the user is present and then automatically reduces monitor brightness when then user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life

LightSensor for the perfect brightness with minimal power

LightSensor uses a smart sensor to adjust the picture brightness depending on the light conditions in the room for the perfect picture with minimal power usage.

Built-in RJ-45 Ethernet gives data security

Built-in USB docking simplifies your connections

Philips USB-docking monitors deliver universal port replication for simple, clutter-free notebook connection. Securely connect to networks and transmit data, video and audio from a laptop using just a single USB cable. What's more, you can dock with a USB Type-C port for additional power charging. With docking monitors with built-in DisplayLink Technology, users can benefit from forwards and backwards USB compatibility with virtually any recent notebook. USB docking can boost business productivity and reduce costs.

DisplayPort-out for connecting additional displays

With DisplayPort-out you can connect multiple high-resolution displays with just one cable from your first display to the PC. The ability to daisy chain multiple displays enables you to maintain a clean desktop without the hassle of too many wires.

Specifications
Manufacturer: Philips Electronics
Manufacturer Part Number: 243B1JH/00
Manufacturer Website Address: http://www.philips.co.uk
Brand Name: Philips
Product Series: B-Line
Product Model: 243B1JH
Product Name: LCD Monitor with USB Docking
Product Type: LCD Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 24"
Viewable Screen Size: 60.5 cm (23.8")
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 4 ms
Response Time Details: 4ms GTG
Aspect Ratio: 16:9
Pixel Pitch: 0.27450 mm x 0.27450 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Panel-mountable
Backlight Technology: WLED
HDCP Supported: Yes
Features:

• Low Blue Light
• EasyRead Mode
• sRGB
• SmartImage
• Flicker-free
• SmartContrast
• PowerSensor
• Light Sensor
• Plug & Play
• Cable Lock Slot
• SmartControl
• On-screen Display (OSD)
• Anti-glare
• 3H Surface Hardness
• Eco Mode

Horizontal Frequency: 30 kHz to 85 kHz
Vertical Frequency: 48 Hz to 75 Hz
Stand Adjustments:

• Height
• Pivot
• Swivel
• Tilt

Video
Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 75 Hz
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 50,000,000:1
Brightness: 250 cd/m²
Color Gamut:

• 88% NTSC
• 105% sRGB

Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
Network (RJ-45): Yes
DVI: No
HDMI: Yes
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of HDMI Inputs: 1
Number of USB Ports: 6
Number of USB Type-C 3.2 Gen 1 Ports: 1
Number of USB 3.2 Downstream Ports: 4
Number of DisplayPorts: 1
Total Number of USB Type-C Ports: 1
Built-in Devices
Built-in Devices: USB Hub
Webcam: Yes
Microphone: Yes
Power Description
Operating Power Consumption: 14.20 W
Standby Power Consumption: 350 mW
Off-Mode Power Consumption: 300 mW
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Colour: Textured Black
Height: 323 mm
Width: 540 mm
Depth: 51 mm
Height with Stand: 501 mm
Width with Stand: 540 mm
Depth with Stand: 205 mm
Weight (Approximate): 3.27 kg
Weight with Stand (Approximate): 4.88 kg
Miscellaneous
Windows Hello Compatible: Yes
Energy Star: Yes
Environmental Certification:

• Electronic Product Environmental Assessment Tool (EPEAT)
• TCO Certified Edge

Energy Efficiency Certification: ENERGY STAR 8.0
Environmental Compliance:

• Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS)
• Restriction of Hazardous Substances (RoHS)
