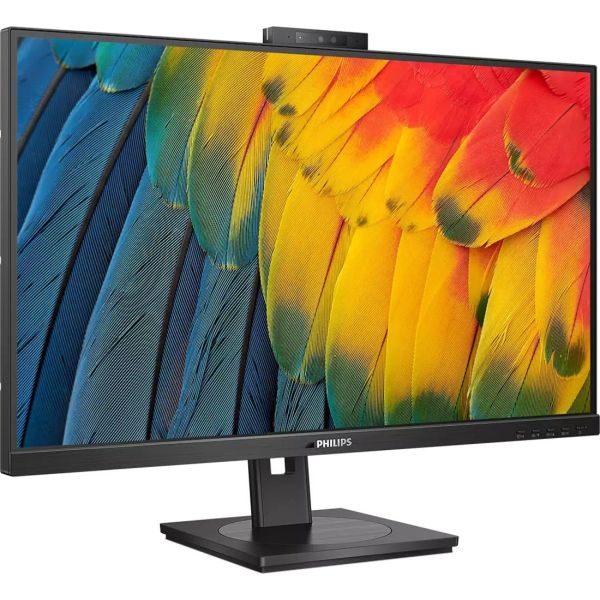

Philips 27B1U5601H Widescreen LCD Monitor

Marketing Information

Daily routine simplified with built-in webcam

• 5000 series
• 27" (68.5 cm)
• 2560 x 1440 (QHD)

RJ-45 to USB-C gives easy network connection with security

Simplify all peripherals from monitor to PC using one-cable docking USB Type-C connector, including networking, high-resolution video output from PC to monitor, and surfing on the Internet without an additional network cable, even without a LAN port on your notebook. RJ45 connection through USB-C offers a fast and secure connection when needed. Getting the fastest data speeds allows you to transfer data from a HDD to your PC faster than ever. Additionally, USB-C with power delivery can even enable you to power and charge ...your notebook from the monitor, eliminating the need for extra power cables.

IPS technology for full colours and wide viewing angles

IPS displays use advanced technology that gives you extra-wide viewing angles of 178/178 degrees, making it possible to view the display from almost any angle - even in 90-degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colours, making it ideal not only for Photos, films and web browsing, but also for professional applications that demand colour accuracy and consistent brightness at all times.

Crystal clear images with Quad HD 2560 x 1440 pixels

These Philips screens deliver Crystal Clear, Quad HD 2560 x 1440 or 2560 x 1080 pixel images. Utilising high-performance panels with high-density pixel count, enabled by high-bandwidth sources like Displayport, HDMI and Dual link DVI, these new displays will make your images and graphics come alive. Whether you are a demanding professional requiring extremely detailed information for CAD-CAM solutions, a user of 3D graphic applications or a financial wizard working on huge spreadsheets, Philips displays will give you Crystal Clear images.

DisplayPort-out for connecting additional displays

With DisplayPort-out you can connect multiple high-resolution displays with just one cable from your first display to the PC. The ability to daisy chain multiple displays enables you to maintain a clean desktop without the hassle of too many wires.

Built-in KVM switch to easily switch between sources

With the MultiClient Integrated KVM switch, you can control two separate PCs with one monitor-keyboard-mouse setup. A convenient button allows you to quickly switch between sources. Handy with setups that require dual PC computing power or sharing one large monitor to show two different PCs.

Specifications
Manufacturer: Philips Electronics
Manufacturer Part Number: 27B1U5601H/00
Manufacturer Website Address: http://www.philips.co.uk
Brand Name: Philips
Product Series: 5000
Product Model: 27B1U5601H
Product Name: 27B1U5601H Widescreen LCD Monitor
Product Type: LCD Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 27"
Viewable Screen Size: 68.6 cm (27")
Screen Mode: WQHD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 4 ms
Response Time Details: 4ms GTG
Aspect Ratio: 16:9
Pixel Pitch: 0.23310 mm x 0.23310 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: WLED
HDCP Supported: Yes
Features:

• Anti-glare
• 3H Surface Hardness
• Flicker-free
• SmartImage
• Image Enhance
• sRGB
• Low Blue Light
• EasyRead Mode
• LED Indicator
• Picture in Picture
• Picture by Picture
• Multiview
• SmartControl
• On-screen Display (OSD)
• Cable Lock Slot
• Plug & Play
• PowerSensor
• Light Sensor
• Eye Comfort Technology
• Wide Viewing Angle
• CAD/CAM Mode
• SmartErgoBase
• Cable Management
• Ergonomic Design

Horizontal Frequency: 30 kHz to 114 kHz
Vertical Frequency: 48 Hz to 75 Hz
Stand Adjustments:

• Height
• Pivot
• Swivel
• Tilt

Stand Included: Yes
Bezel Color: Black
Glass Hardness: 3H
Camera Resolution: 5 Megapixel
Video
Maximum Resolution: 2560 x 1440
Standard Refresh Rate: 75 Hz
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 50,000,000:1
Brightness: 350 cd/m²
Color Gamut:

• 89% NTSC
• 101% sRGB

Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
Network (RJ-45): Yes
HDMI: Yes
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of HDMI Inputs: 1
Number of USB Ports: 6
Number of DisplayPorts: 2
Built-in Devices
Built-in Devices:

• USB Hub
• KVM Switch

Webcam: Yes
Microphone: Yes
Power Description
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Colour: Textured Black
Height: 366 mm
Width: 613 mm
Depth: 55 mm
Height with Stand: 537 mm
Width with Stand: 613 mm
Depth with Stand: 225 mm
Weight (Approximate): 5.54 kg
Weight with Stand (Approximate): 7.30 kg
Miscellaneous
Energy Star: Yes
TCO Certified: Yes
Environmental Certification: TCO Certified Edge
Energy Efficiency Certification: ENERGY STAR 8.0
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS)
